Abdomen anatomy, structure by structure

Abdominal MRI is one of the highest-yield body exams a technologist will run, and reading it confidently starts with knowing the normal cross-sectional anatomy cold. This reference walks through every structure in our abdomen flashcard deck across the two standard planes (axial and coronal), with a plain-language definition, how each structure looks on MRI, and the pathology you will actually encounter at the scanner.

Liver and biliary

The largest solid abdominal organ and the duct system that drains it. On axial you orient front to back through the upper abdomen; on coronal you see the liver dome under the diaphragm.

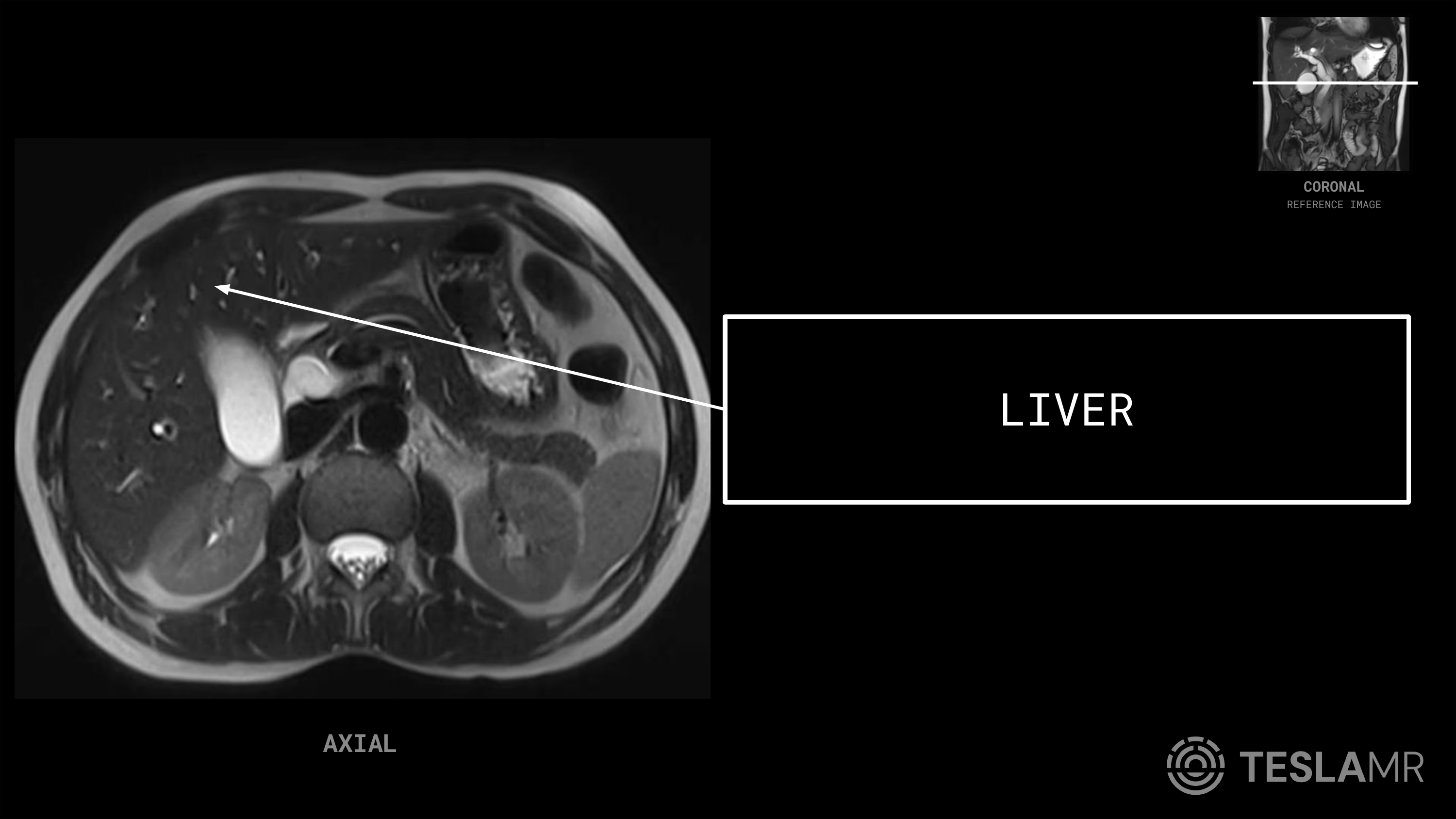

Liver

The large solid organ in the right upper quadrant that filters blood, makes bile, and stores glycogen.

On MRI: Fills the right upper quadrant just below the diaphragm; homogeneous intermediate signal that is mildly bright on T1 and mildly dark on T2, slightly brighter than spleen on T1. Best surveyed on axial, with the dome best seen on coronal.

Common pathology: Hepatic cysts and hemangiomas, fatty infiltration (steatosis), metastases, and hepatocellular carcinoma in cirrhotic livers.

Tip: The liver is normally a bit brighter than the spleen on in-phase T1; a liver darker than spleen or one that drops signal on out-of-phase images suggests fatty change or iron.

Gallbladder

The pear-shaped sac on the undersurface of the liver that stores and concentrates bile.

On MRI: A rounded fluid-filled structure tucked into the gallbladder fossa on the inferior liver edge; very bright on T2 and dark on T1 when it holds clear bile. Easy to find on axial and coronal at the porta hepatis level.

Common pathology: Gallstones (signal voids in bright bile), cholecystitis with wall thickening, and gallbladder polyps or carcinoma.

Tip: Fasting distends the gallbladder and makes it brightest on T2; a layering dark-bright interface inside it often means stones or sludge.

Common Bile Duct

The duct formed by the cystic and common hepatic ducts that carries bile to the duodenum.

On MRI: A thin tubular bright structure on heavily T2-weighted and MRCP images, running through the head of the pancreas to the ampulla. Coronal and MRCP projections show its full course best.

Common pathology: Choledocholithiasis (obstructing stones), strictures, and obstruction from pancreatic head masses; a normal duct is roughly up to 6 to 7 mm.

Tip: On MRCP the bile duct and pancreatic duct join near the ampulla; trace the bright fluid column down to where it narrows to spot the level of obstruction.

Pancreas

The retroperitoneal gland that sweeps from the duodenal C-loop across the midline toward the spleen. The deck labels the head, body, and tail along that sweep.

Head

The widest part of the pancreas, nestled in the C-loop of the duodenum to the right of the midline.

On MRI: Sits just anterior to the inferior vena cava and to the right of the superior mesenteric vessels on axial; normal pancreas is bright on fat-suppressed T1 due to its glandular protein content.

Common pathology: Pancreatic adenocarcinoma most often arises in the head and can obstruct the bile duct, and the head is a common site for inflammatory masses in chronic pancreatitis.

Tip: The common bile duct and pancreatic duct run through the head; following both ducts into a focal mass here is a classic adenocarcinoma sign.

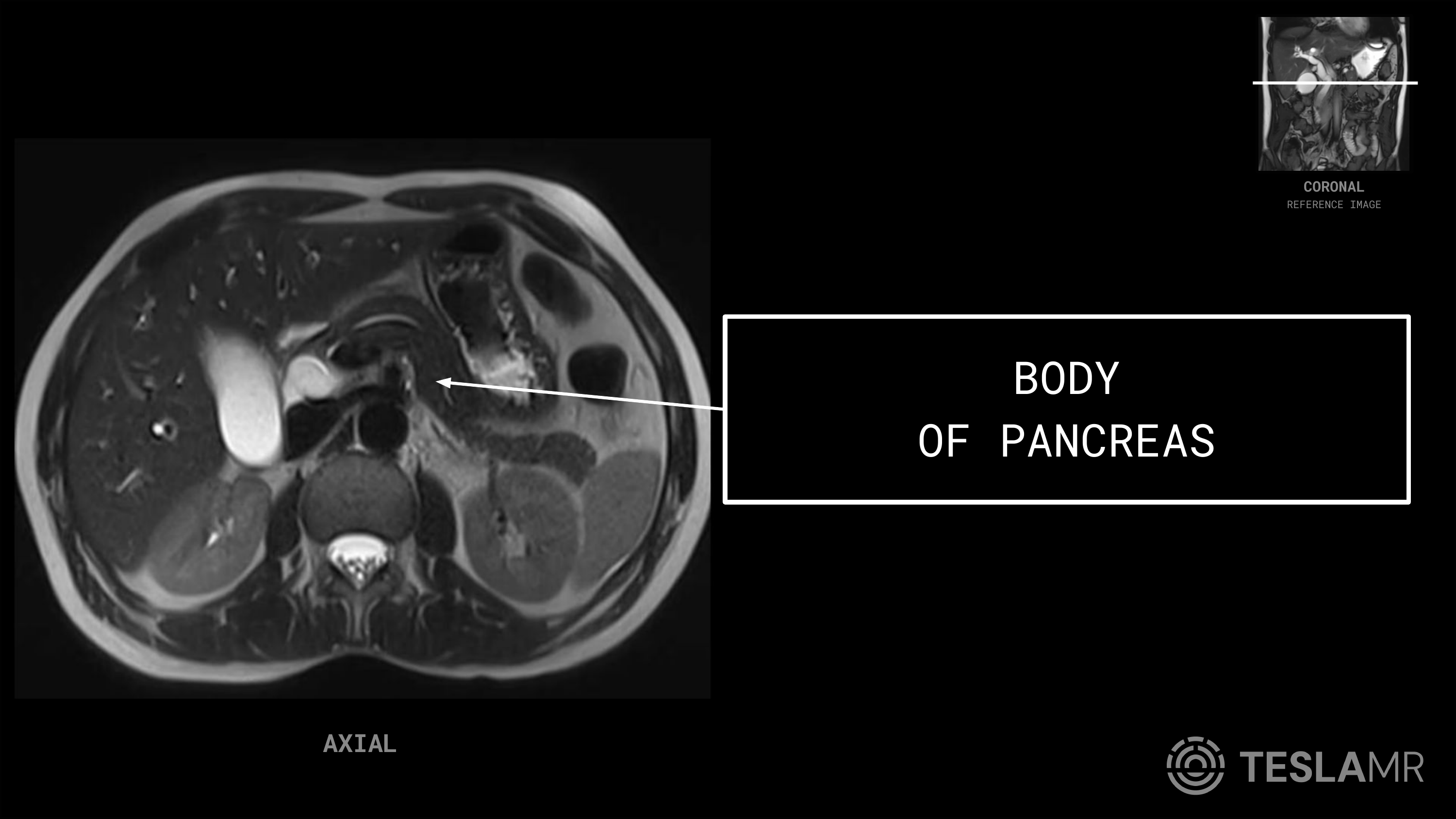

Body

The midportion of the pancreas crossing the midline anterior to the spine and great vessels.

On MRI: Drapes across the front of the aorta and superior mesenteric vessels on axial, with the splenic vein running along its posterior surface; same bright fat-suppressed T1 glandular signal as the rest of the gland.

Common pathology: Pancreatitis with peripancreatic fluid and fat stranding, and tumors that can encase the celiac and superior mesenteric vessels.

Tip: The splenic vein runs along the back of the body and tail; use it as a rail to follow the gland from head to tail.

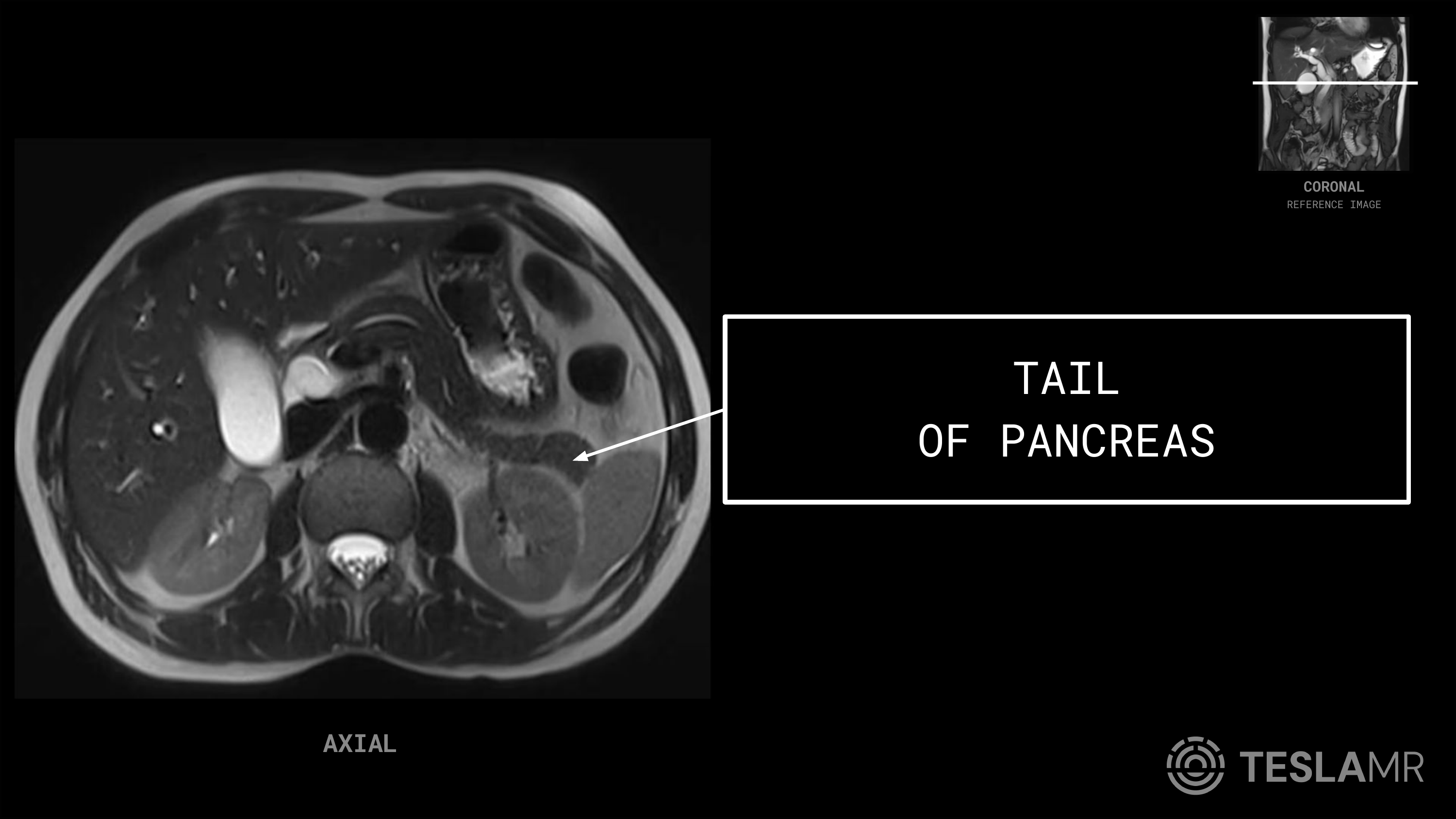

Tail

The narrow left end of the pancreas that reaches toward the splenic hilum.

On MRI: Tapers toward the spleen in the left upper quadrant on axial, often the trickiest segment to see because it varies in position and length.

Common pathology: Tail lesions are easy to miss and can present late; pseudocysts and tumors here may abut the spleen and left kidney.

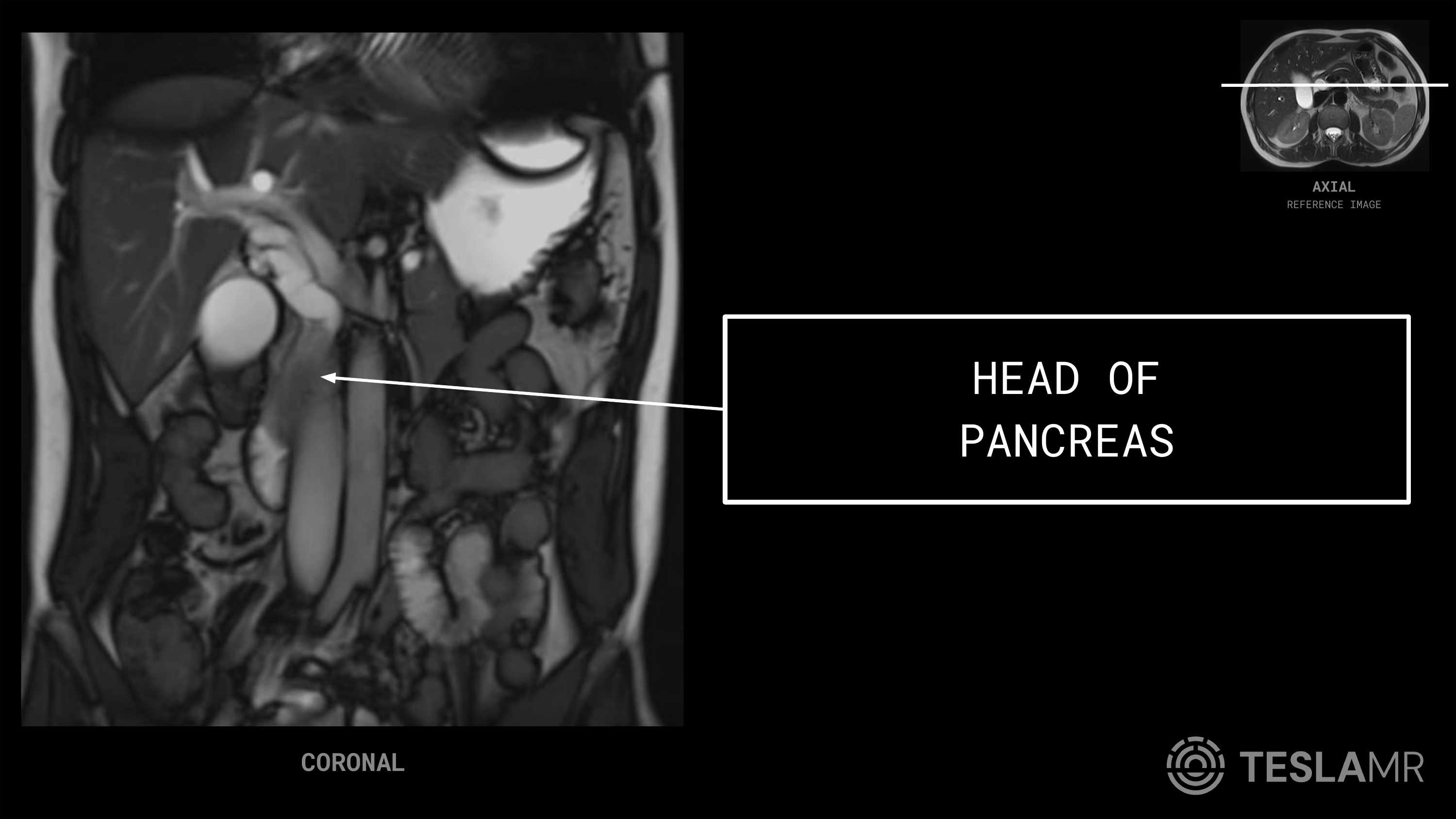

Head of Pancreas

The widest part of the pancreas, shown on the coronal plane within the C-loop of the duodenum.

On MRI: On coronal it lies medial to the duodenum and just anterior to the inferior vena cava; glandular tissue is bright on fat-suppressed T1.

Common pathology: The most common location for pancreatic adenocarcinoma, which can obstruct both the bile duct and the pancreatic duct (the double-duct sign).

Tip: Coronal images line up the pancreatic head, the lower common bile duct, and the duodenum together, which helps localize a head mass relative to the ampulla.

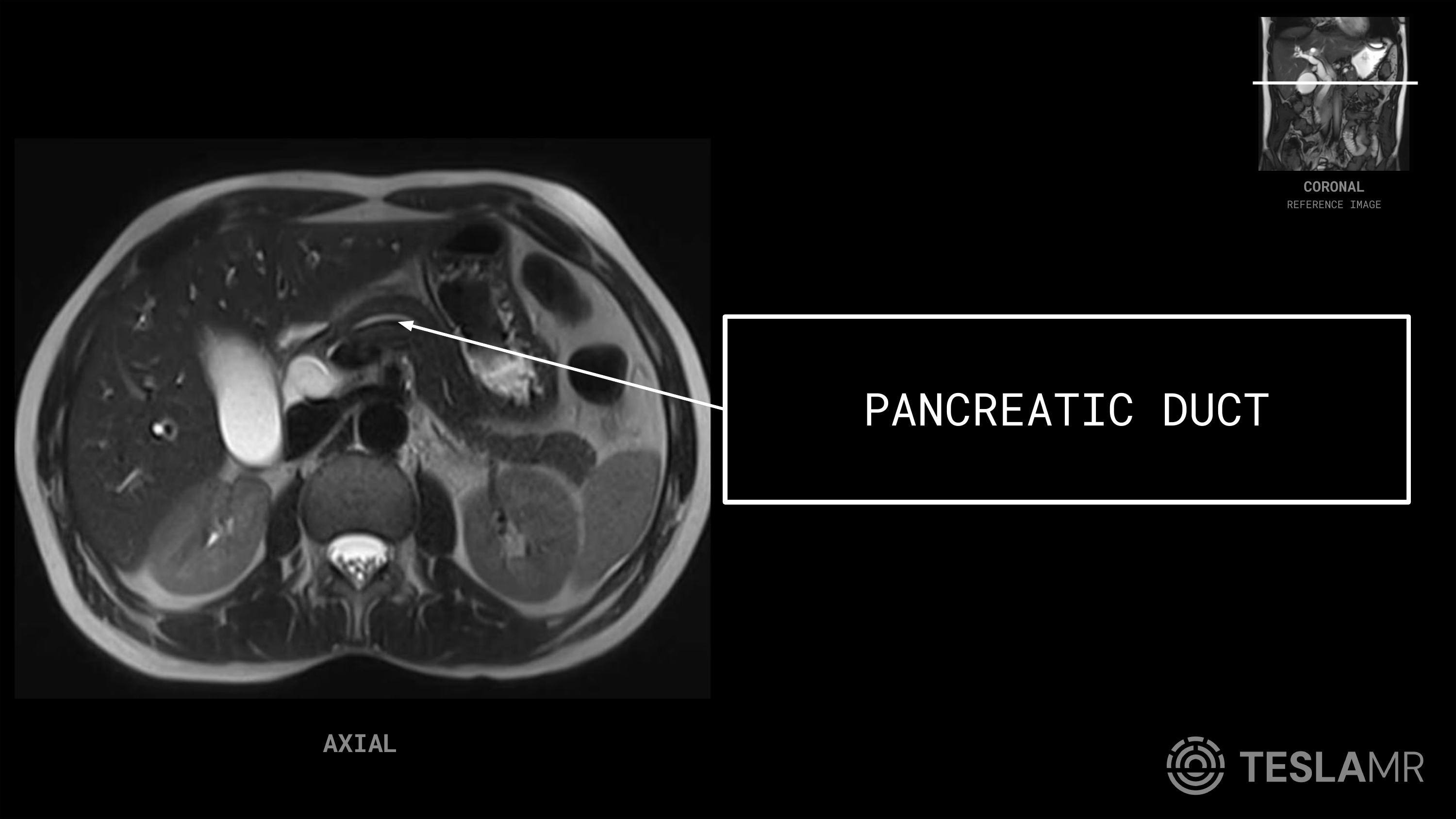

Pancreatic Duct

The main duct (duct of Wirsung) running the length of the pancreas to drain enzymes into the duodenum.

On MRI: A fine bright line within the gland on T2 and MRCP, normally only 1 to 3 mm wide and tapering toward the tail.

Common pathology: Dilation from an obstructing head mass or stone, the beaded duct of chronic pancreatitis, and side-branch dilation in IPMN.

Tip: A smoothly dilated pancreatic duct that abruptly cuts off should make you look hard at the pancreatic head for a small obstructing tumor.

Spleen and GI tract

The largest lymphoid organ and the hollow viscera of the upper abdomen. Bowel and stomach signal depends on whether they are fluid-filled or collapsed.

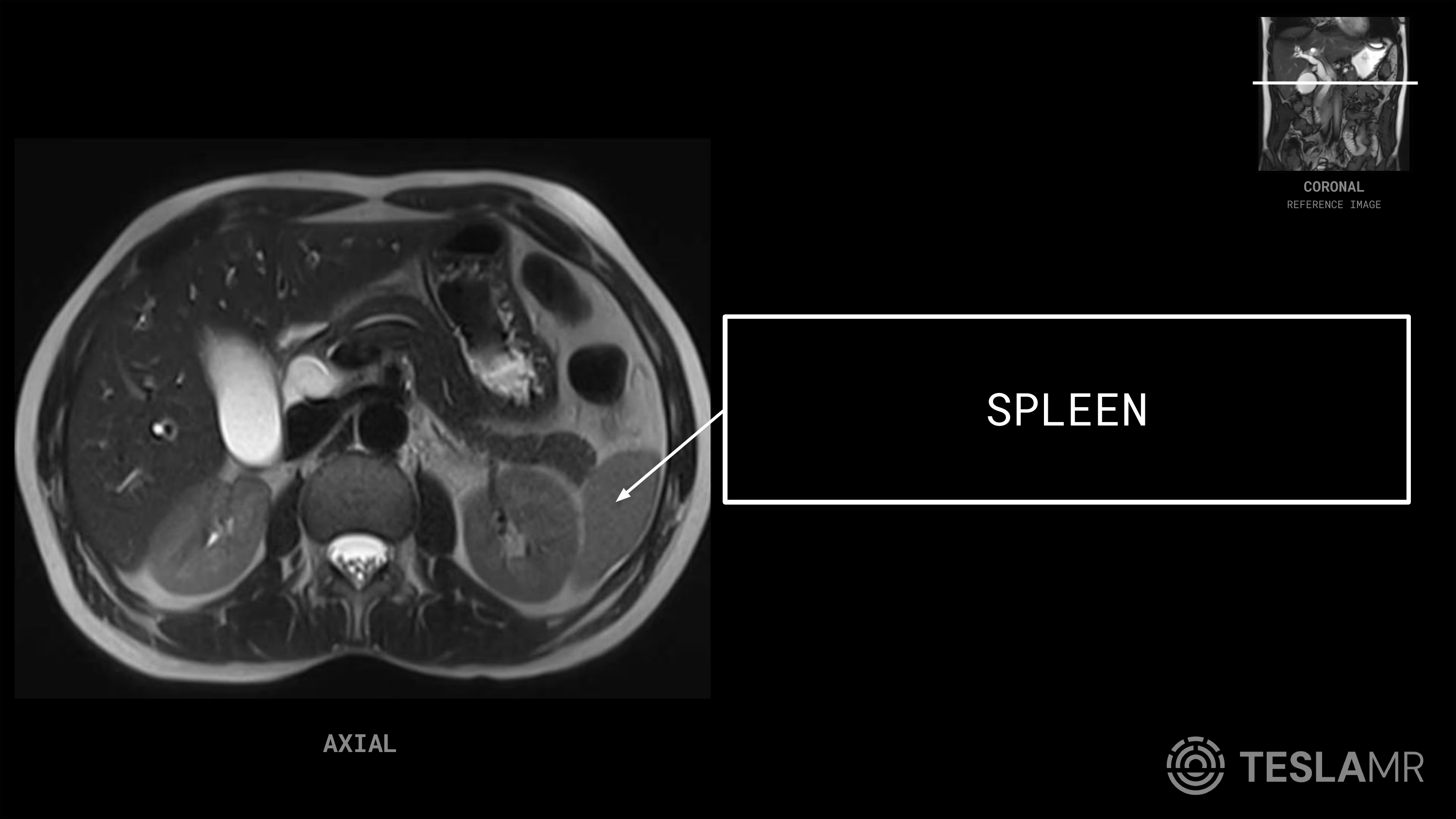

Spleen

The lymphoid organ in the left upper quadrant that filters blood and supports the immune system.

On MRI: Curves along the left posterolateral abdomen behind the stomach; normally slightly darker than liver on T1 and brighter than liver on T2. Best surveyed on axial.

Common pathology: Splenomegaly from portal hypertension or infection, accessory spleens, cysts, and traumatic laceration.

Tip: Normal spleen is brighter than liver on T2; remember the spleen and liver swap their relative brightness between T1 and T2.

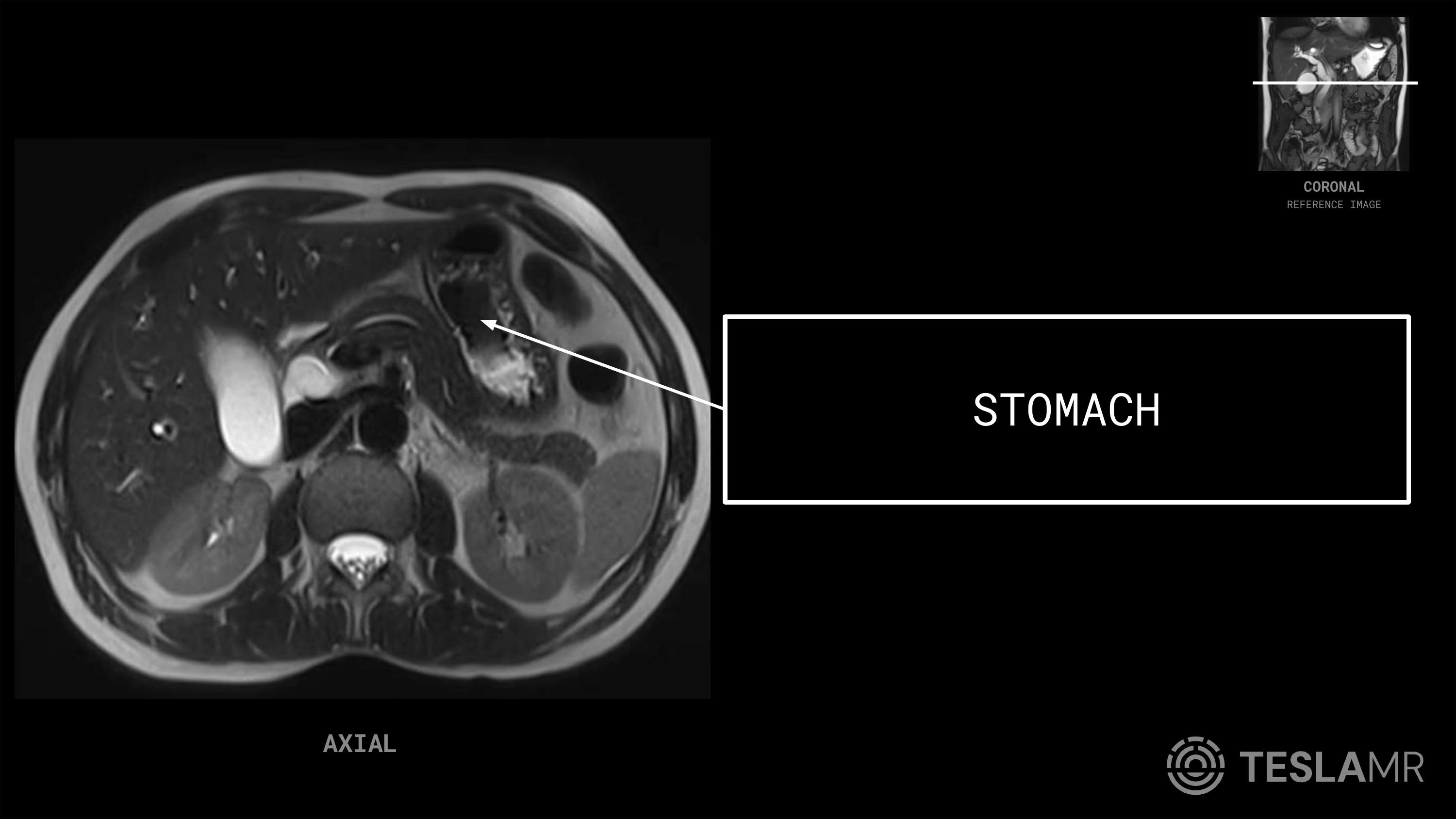

Stomach

The muscular digestive sac in the left upper abdomen between the esophagus and the duodenum.

On MRI: Appearance varies with filling: fluid is bright on T2 and air is a signal void, with a thin enhancing wall. Seen anterior to the pancreas and medial to the spleen on axial and coronal.

Common pathology: Wall thickening from gastritis or carcinoma, and hiatal hernia at the gastroesophageal junction.

Tip: A collapsed stomach can mimic a mass; oral fluid or repeat imaging after distension helps confirm it is just normal bowel.

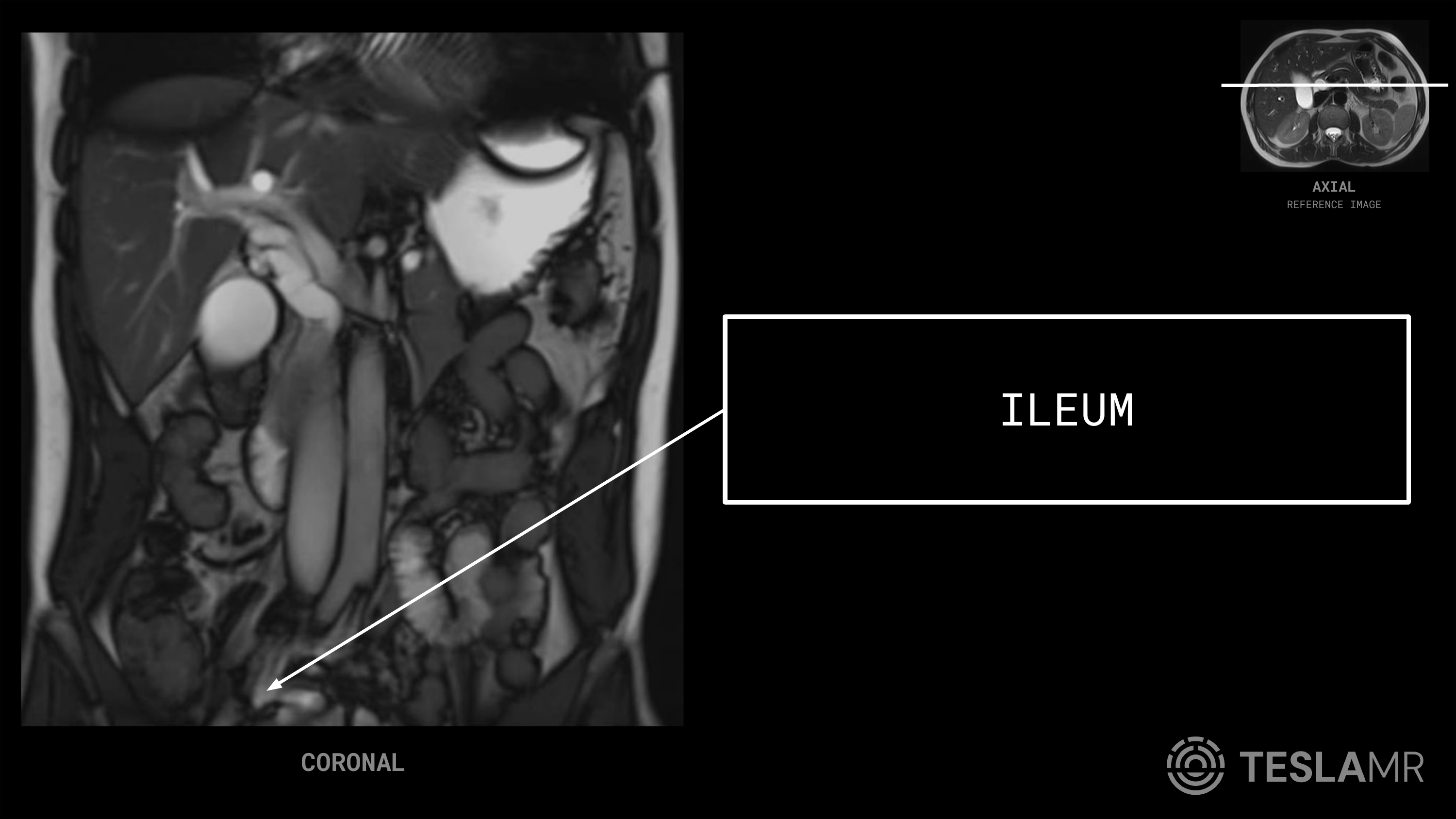

Ileum

The final and longest segment of the small intestine, ending at the ileocecal valve in the right lower quadrant.

On MRI: Loops of small bowel in the lower abdomen and pelvis; fluid-filled lumen is bright on T2 with a thin normal wall (usually under 3 mm) best assessed on coronal MR enterography.

Common pathology: Crohn disease favors the terminal ileum, with wall thickening, mural enhancement, and the comb sign on MR enterography.

Tip: Coronal MR enterography lays out the bowel loops; follow them to the right lower quadrant to evaluate the terminal ileum for Crohn changes.

Kidneys

The paired retroperitoneal organs that filter blood and make urine, with the right kidney sitting slightly lower than the left.

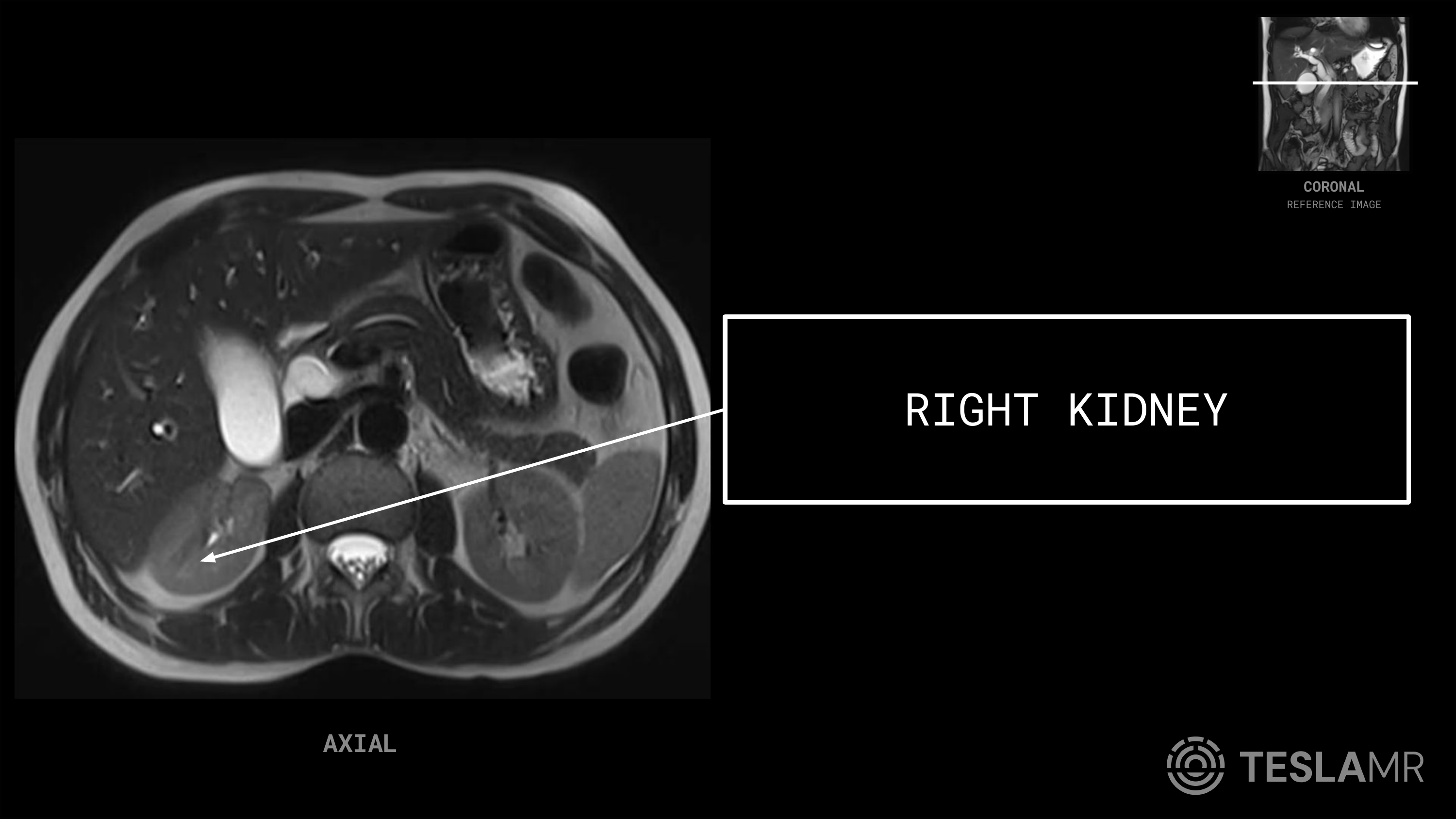

Right Kidney

The bean-shaped retroperitoneal organ on the right that filters blood and produces urine.

On MRI: Lies behind the liver, usually a little lower than the left kidney because the liver pushes it down. Cortex is brighter than the deeper medulla on T1, with corticomedullary differentiation best on T1.

Common pathology: Simple cysts (bright on T2, no enhancement), angiomyolipomas, and renal cell carcinoma as an enhancing solid mass.

Tip: Use loss of the dark fat plane and abnormal enhancement to separate a true renal mass from a benign cyst.

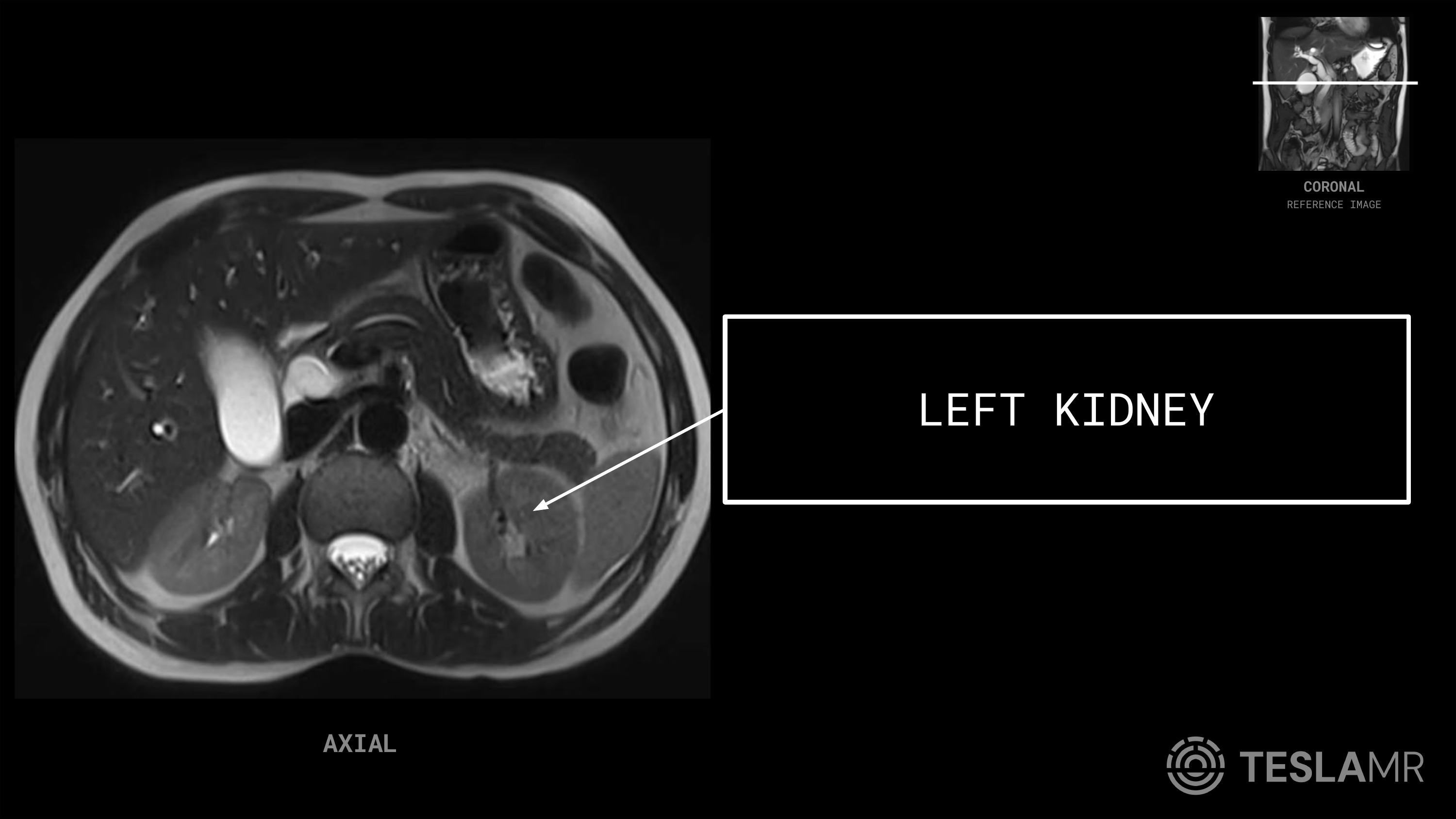

Left Kidney

The bean-shaped retroperitoneal organ on the left that filters blood and produces urine.

On MRI: Sits behind the spleen and tail of the pancreas, typically slightly higher than the right kidney. Same corticomedullary signal pattern as the right.

Common pathology: Cysts, angiomyolipomas, renal cell carcinoma, and obstruction with a dilated bright collecting system on T2.

Tip: Compare the two kidneys side by side on the same slice; asymmetry in size, enhancement, or collecting-system dilation flags the abnormal side.

Great vessels

The major midline retroperitoneal vessels. Flowing blood usually appears as a dark flow void on standard spin-echo and bright on gradient-echo or contrast sequences.

Abdominal Aorta

The main artery of the abdomen, running just left of the midline in front of the spine and supplying the abdominal organs and legs.

On MRI: A round midline vessel anterior and slightly left of the vertebral bodies; a dark flow void on spin-echo and bright on contrast-enhanced MRA. Coronal shows its full vertical course and branches.

Common pathology: Abdominal aortic aneurysm, dissection (intimal flap), and atherosclerotic stenosis at the origins of the renal and mesenteric arteries.

Tip: The aorta lies to the left and the inferior vena cava to the right; on axial the aorta is round and pulsatile while the cava is more oval and compressible.

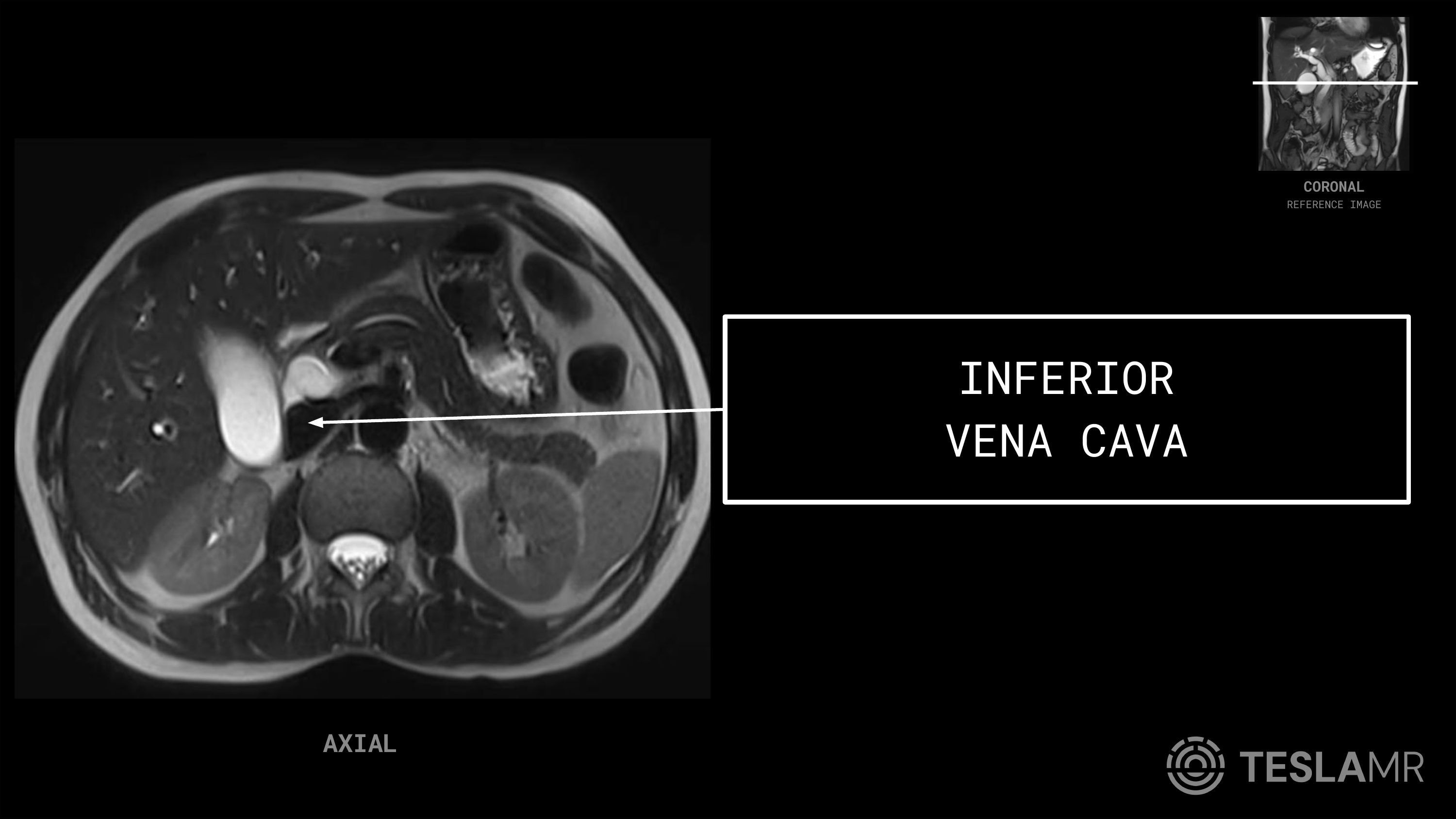

Inferior Vena Cava

The large vein to the right of the aorta that returns blood from the abdomen and lower body to the heart.

On MRI: An oval vessel right of the aorta, anterior to the spine and behind the liver; flow void on spin-echo, with appearance varying by flow and sequence. Coronal shows its course up to the right atrium.

Common pathology: Bland or tumor thrombus (notably extending from renal cell carcinoma), compression by masses, and congenital variants such as a duplicated cava.

Tip: Follow the cava up through the bare area of the liver to the right atrium; tumor thrombus reaching the cava changes surgical staging.

Bony and thoracic landmarks

The skeletal and chest structures that bracket the abdominal field of view and help you orient the top and bottom of the study.

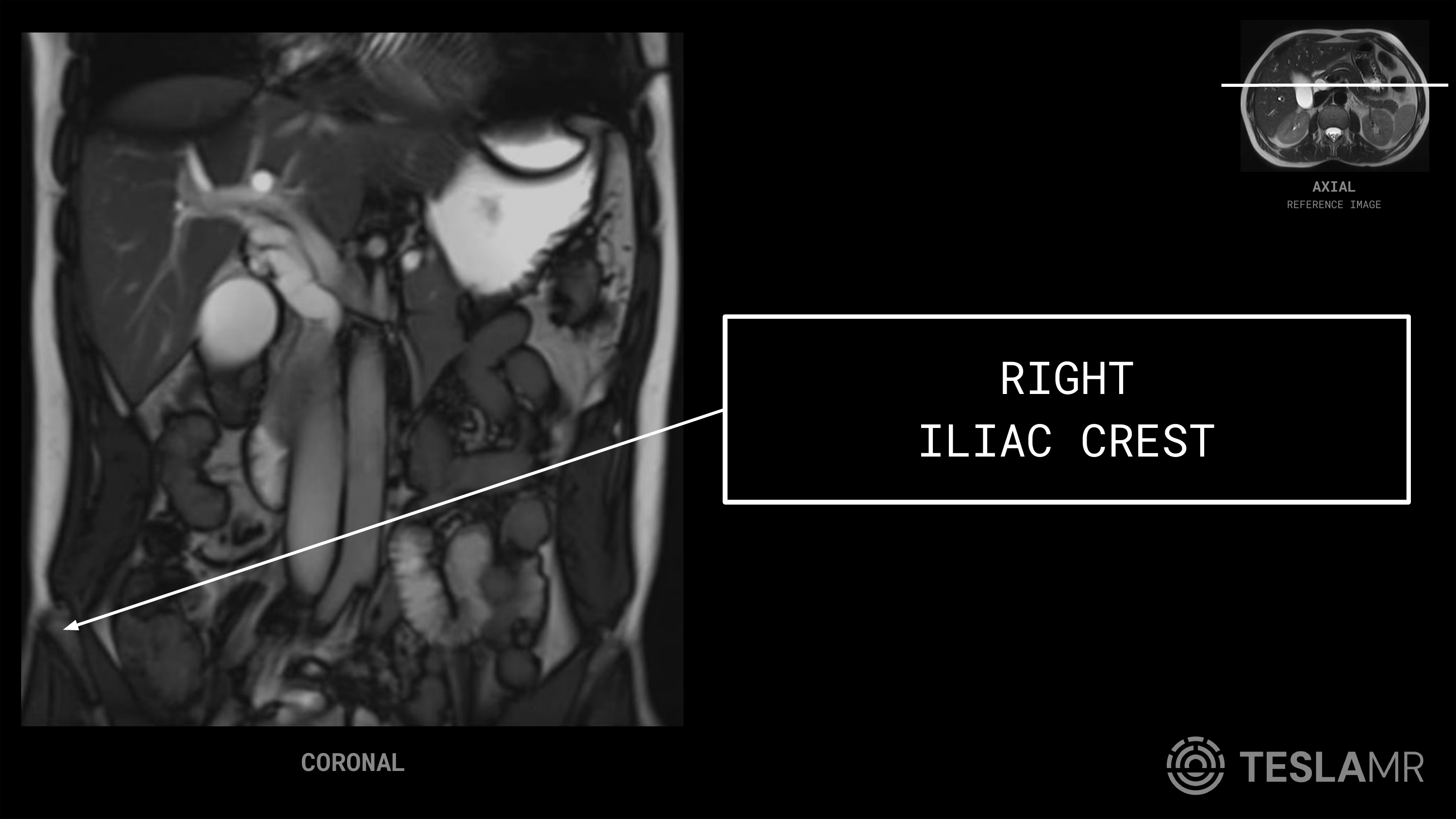

Right Iliac Crest

The curved upper rim of the right iliac (hip) bone, a key bony landmark of the lower abdomen and pelvis.

On MRI: A bright fatty-marrow rim of bone on T1 forming the lateral wall of the lower abdomen on coronal, with low-signal cortical bone outlining it.

Common pathology: A common site for marrow-replacing metastases and a frequent landmark for marrow signal assessment.

Tip: The iliac crests mark the bottom of most abdominal acquisitions and roughly the L4 vertebral level; use them to confirm caudal coverage.

Left Iliac Crest

The curved upper rim of the left iliac (hip) bone, the mirror landmark of the lower abdomen and pelvis.

On MRI: A bright fatty-marrow rim on T1 forming the left lateral wall of the lower abdomen on coronal, with dark cortical bone at its edge.

Common pathology: Marrow-replacing metastases and diffuse marrow signal change from anemia or infiltration.

Tip: Compare the two iliac crests for symmetric marrow signal; a focally dark crest on T1 can be an early metastatic clue.

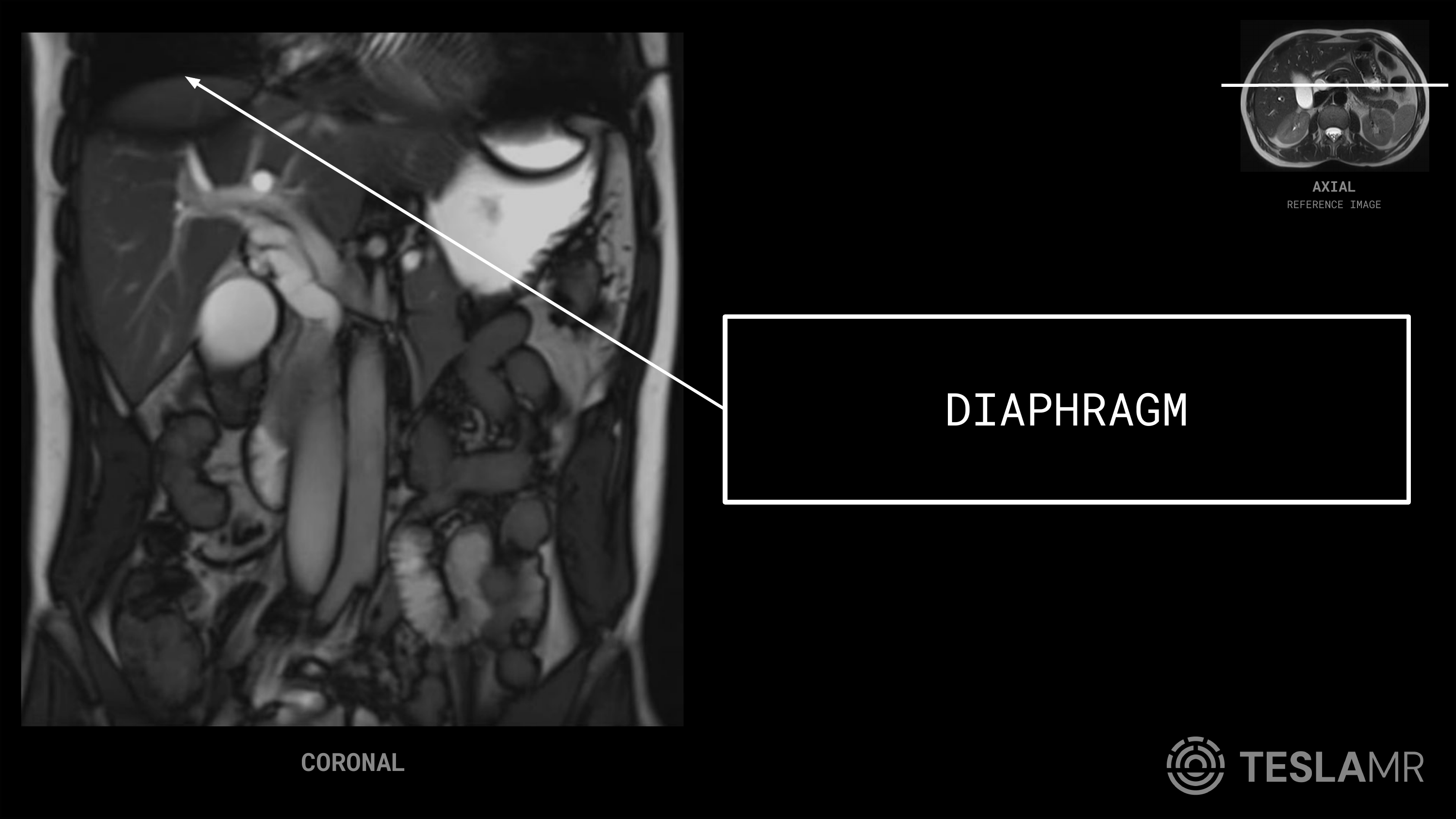

Diaphragm

The dome-shaped muscle that separates the chest from the abdomen and drives breathing.

On MRI: A thin low-signal curved band over the liver and spleen on coronal, separating the lung bases above from the upper abdominal organs below.

Common pathology: Hiatal hernia through the esophageal opening, diaphragmatic eventration, and rupture after trauma.

Tip: Respiratory motion of the diaphragm drives upper-abdominal blur; the diaphragm position is why breath-hold or navigator timing matters for liver imaging.

Heart

The muscular pump in the chest, seen at the superior edge of an abdominal study just above the diaphragm.

On MRI: Sits above the diaphragm and liver dome on the most superior coronal slices; chambers show flowing blood and the wall shows muscle signal, often with motion or pulsation artifact.

Common pathology: Incidental pericardial effusion and cardiac motion artifact projecting into the upper liver are the main things a body tech notices.

Tip: Cardiac pulsation can ghost across the upper liver in the phase-encode direction; this is why the heart edge appears at the top of coronal abdominal images.

Left Lung

The air-filled left lung base, seen above the diaphragm at the top of an abdominal coronal series.

On MRI: A signal-void (dark) air-filled space above the left hemidiaphragm; pleural fluid or consolidation at the base shows up as bright T2 signal.

Common pathology: Incidental basal pleural effusion or atelectasis is the common finding caught at the top of an abdominal study.

Tip: The lung bases mark the cranial edge of abdominal coverage; a bright crescent above the diaphragm is usually a pleural effusion worth noting.

Frequently asked questions

What structures are seen on an abdominal MRI?

A standard abdominal MRI shows the solid organs (liver, spleen, pancreas, and kidneys), the biliary system (gallbladder and common bile duct) and pancreatic duct, the stomach and small bowel, the great vessels (abdominal aorta and inferior vena cava), and the bordering landmarks such as the diaphragm, lung bases, heart edge, and iliac crests. This page labels each one with its MRI appearance across the axial and coronal planes.

Which planes are used for abdominal MRI anatomy?

Axial and coronal are the two workhorse planes. Axial is best for surveying the liver, pancreas, kidneys, spleen, and the relationship of the aorta to the inferior vena cava, while coronal lays out the long axis of the kidneys, the great vessels, the bile duct, and the bowel and shows the diaphragm and organ domes in one image.

What sequences are key for abdominal MRI?

Common building blocks are T2-weighted images (often with fat suppression) for fluid and lesion conspicuity, in-phase and out-of-phase T1 gradient-echo to detect fat and assess the liver, diffusion-weighted imaging for lesions, dynamic post-contrast T1, and heavily T2-weighted MRCP for the biliary and pancreatic ducts. Breath-hold or navigator gating is used to control respiratory motion.

How do you tell the aorta from the inferior vena cava on abdominal MRI?

On an axial image the abdominal aorta sits to the left of the midline in front of the spine and stays round and pulsatile, while the inferior vena cava lies to the right, is more oval, and is easily compressed. Following the cava upward to the right atrium and the aorta to its branches confirms the two vessels.
