IACs anatomy, structure by structure

Internal auditory canal (IAC) imaging is a focused, high-resolution study, and reading it well starts with knowing the four nerves in the canal and the fluid-filled inner ear cold. This reference walks through every structure in our IACs flashcard deck across the axial and coronal planes, with a plain-language definition, how each structure looks on MRI, and the pathology you will actually run into at the scanner.

Nerves in the IAC

Four nerves run through the internal auditory canal. On heavily T2-weighted thin slices they are dark linear bundles outlined by bright fluid; an axial slice catches them in cross-section and a coronal or sagittal-oblique slice lays them out along the canal.

Cochlear Nerve

The branch of the vestibulocochlear nerve that carries hearing signals from the cochlea back toward the brainstem.

On MRI: On a thin-slice high-resolution T2 (CISS/FIESTA) axial it is a dark, round-to-linear bundle in the anterior-inferior quadrant of the canal, sitting in bright fluid. It is best confirmed on an oblique-sagittal slice cut across the canal, where it occupies the front-bottom position.

Common pathology: A small or absent cochlear nerve (cochlear nerve aplasia/hypoplasia) is sought before cochlear implantation; the nerve can also be involved by a vestibular schwannoma.

Tip: Remember the canal quadrants by 'Seven-Up, Coke-Down': the facial (CN VII) nerve is up-front and the cochlear nerve is down-front.

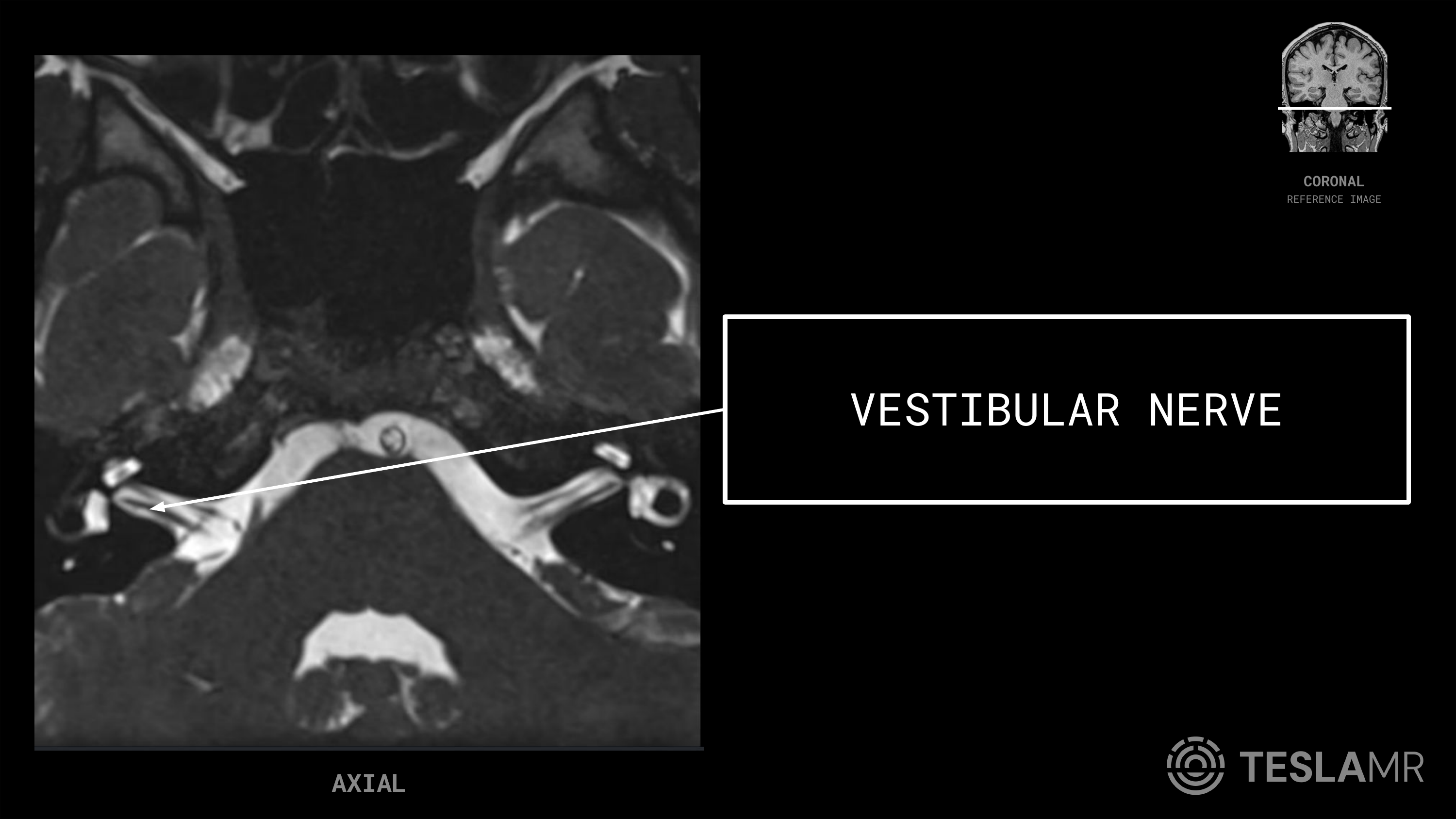

Vestibular Nerve

The balance branch of the vestibulocochlear nerve, carrying signals from the semicircular ducts and vestibule toward the brainstem.

On MRI: A dark nerve bundle in the posterior half of the canal on thin-slice T2, occupying the back quadrants where it divides into superior and inferior divisions. Bright fluid surrounds it on CISS/FIESTA.

Common pathology: The most common origin site of a vestibular schwannoma (acoustic neuroma), which appears as an enhancing soft-tissue mass replacing the normal dark nerve and fluid.

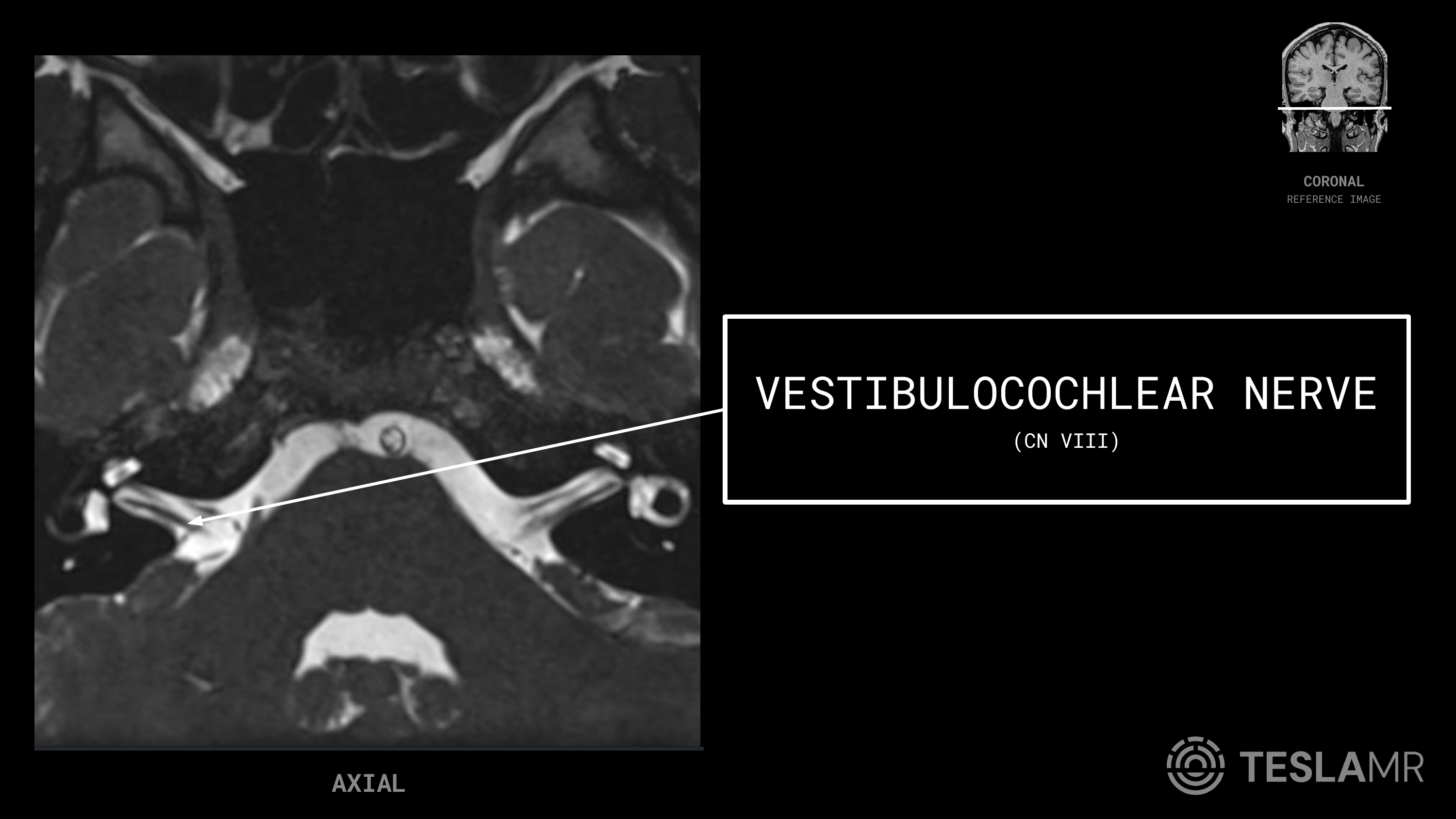

Vestibulocochlear Nerve (CN VIII)

The eighth cranial nerve, carrying both hearing and balance fibers; it is the combined trunk of the cochlear and vestibular nerves.

On MRI: A dark nerve trunk crossing the cerebellopontine angle cistern and entering the IAC alongside the facial nerve on thin-slice T2. Axial shows it running medial-to-lateral; coronal shows it in cross-section within the canal.

Common pathology: Vestibular schwannoma is the classic CN VIII mass, presenting with unilateral sensorineural hearing loss; this nerve is the central reason most dedicated IAC studies are ordered.

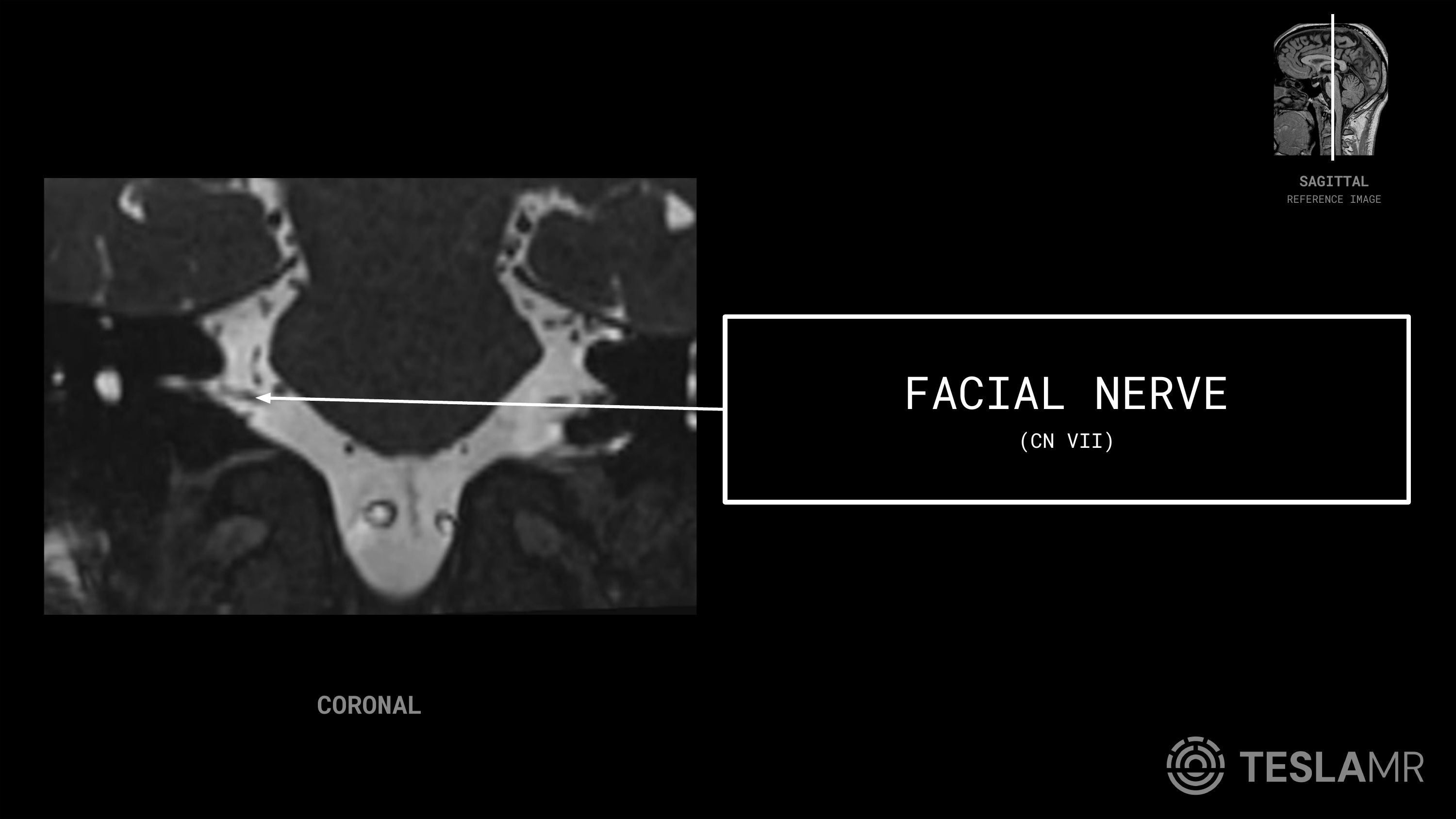

Facial Nerve (CN VII)

The seventh cranial nerve, controlling the muscles of facial expression; it travels through the IAC with CN VIII before entering the facial canal.

On MRI: A thin dark nerve in the anterior-superior quadrant of the canal on high-resolution T2, running just in front of the superior vestibular nerve. Coronal and oblique-sagittal slices show its position best.

Common pathology: Facial schwannoma, Bell palsy (enhancement of the facial nerve), and perineural tumor spread; the nerve is mapped before posterior fossa or parotid surgery.

Tip: On the oblique-sagittal 'face of the canal' view, the facial nerve is the anterior-superior dot, separated from the cochlear nerve below it by the falciform crest.

Membranous labyrinth

The fluid-filled inner ear sits just lateral to the canal. On heavily T2-weighted thin slices the endolymph and perilymph are bright, so the cochlea, vestibule, and semicircular ducts glow against the dark surrounding temporal bone.

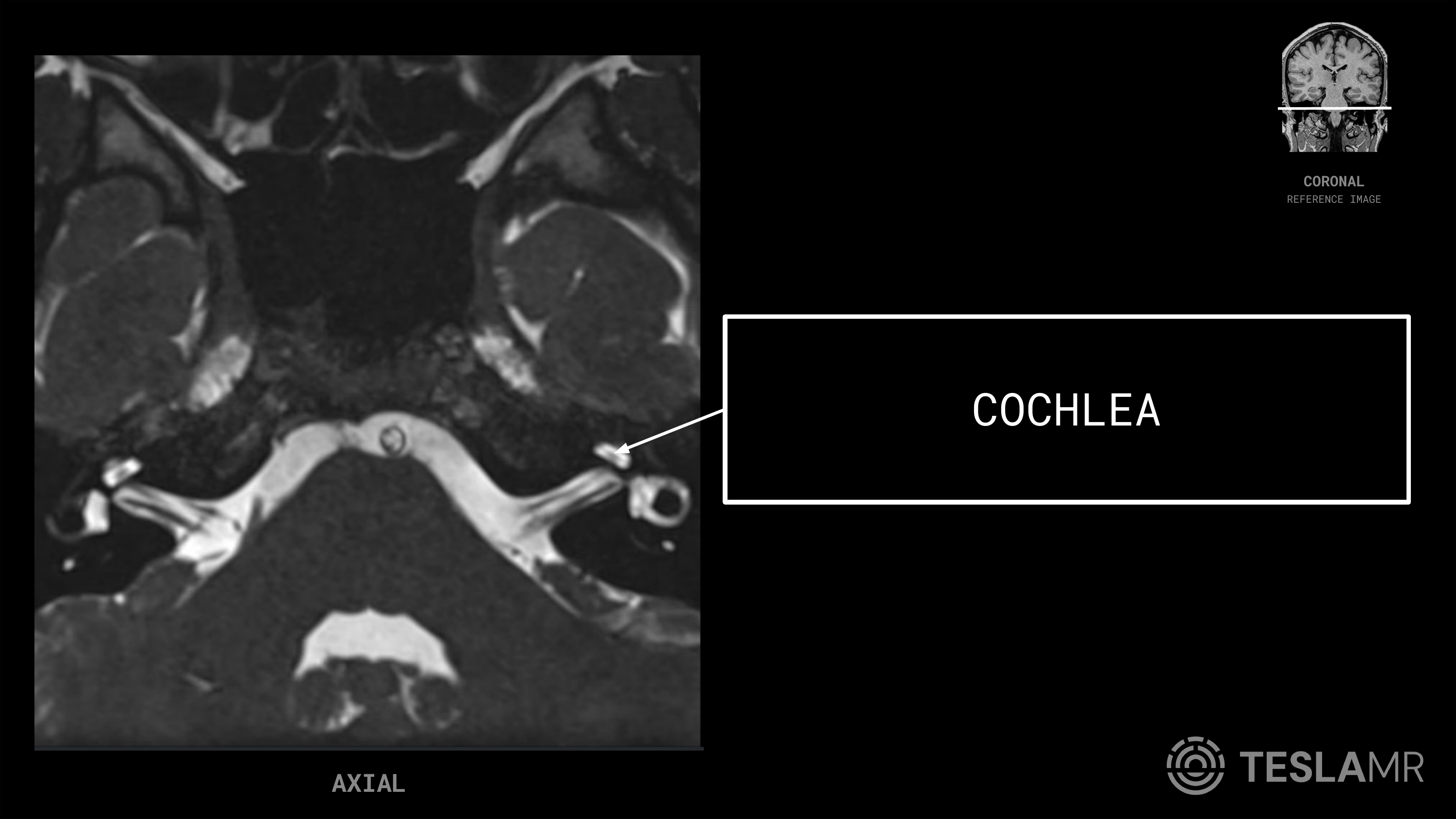

Cochlea

The snail-shaped, spiraling part of the inner ear that converts sound vibrations into nerve signals.

On MRI: A bright spiral of fluid on thin-slice high-resolution T2 (CISS/FIESTA) just lateral and anterior to the fundus of the IAC; the two-and-a-half turns can often be traced on axial.

Common pathology: Labyrinthitis (loss of the normal bright fluid signal or abnormal enhancement), labyrinthitis ossificans, and congenital malformations assessed before cochlear implant.

Tip: Follow the cochlear nerve laterally out of the canal and it leads you straight to the bright spiral of the cochlea.

Vestibule

The central chamber of the bony and membranous labyrinth that houses the balance organs (utricle and saccule) between the cochlea and the semicircular canals.

On MRI: A small bright oval of fluid on thin-slice T2 lateral to the IAC fundus, sitting between the cochlea in front and the semicircular ducts behind.

Common pathology: Labyrinthitis, endolymphatic hydrops (Meniere disease, often studied with delayed post-contrast imaging), and post-traumatic or congenital malformations.

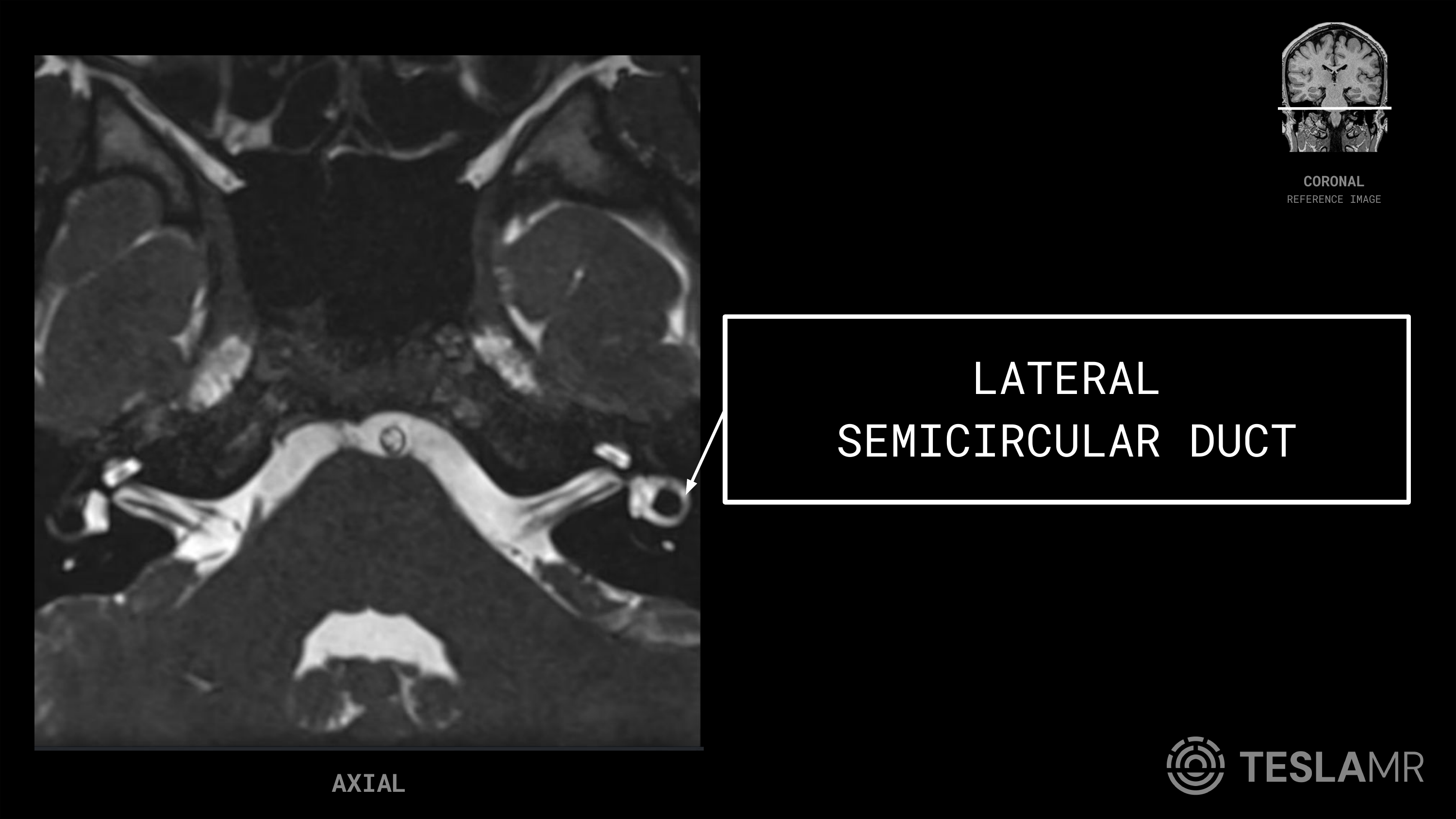

Lateral Semicircular Duct

The horizontal balance loop of the membranous labyrinth, one of the three semicircular ducts that sense rotational head movement.

On MRI: A bright fluid ring projecting laterally and posteriorly off the vestibule on thin-slice high-resolution T2; the lateral duct lies closest to the axial plane and is usually the easiest loop to see in full.

Common pathology: Labyrinthitis ossificans (loss of fluid signal), semicircular canal dehiscence (better characterized on CT), and congenital dysplasia.

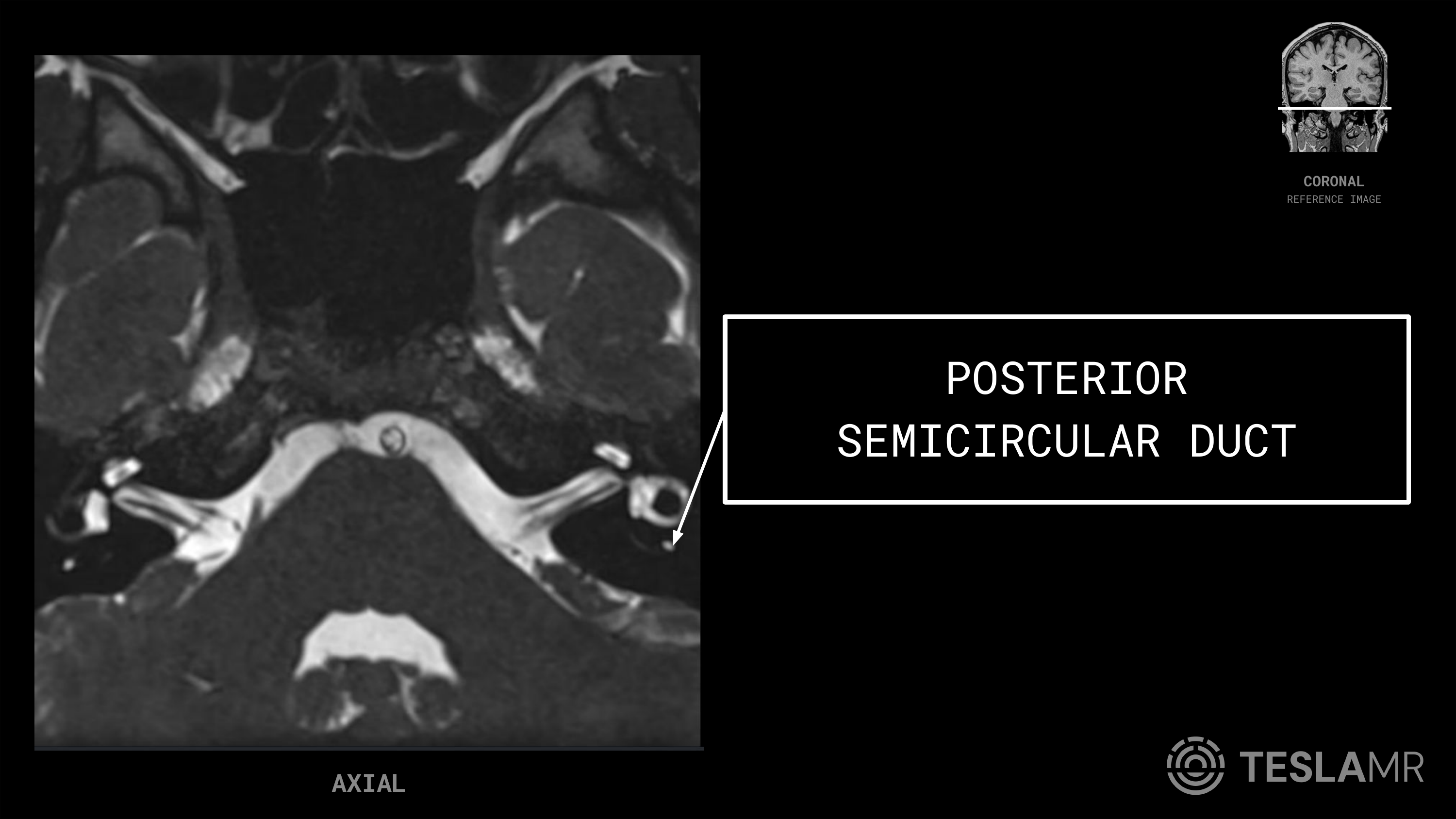

Posterior Semicircular Duct

The vertically oriented posterior balance loop of the membranous labyrinth, sensing head rotation in the posterior plane.

On MRI: A bright fluid loop arising from the back of the vestibule on thin-slice T2, oriented more vertically than the lateral duct, so it is often seen in partial cross-section on a single axial slice.

Common pathology: Labyrinthitis, ossificans, and dysplasia; its position is also a landmark for the posterior fossa surface during surgical planning.

Bony canal

The bony tunnel that carries the nerves from the cerebellopontine angle to the inner ear. Its margins are dark cortical bone, and its fluid-filled lumen is bright on heavily T2-weighted imaging.

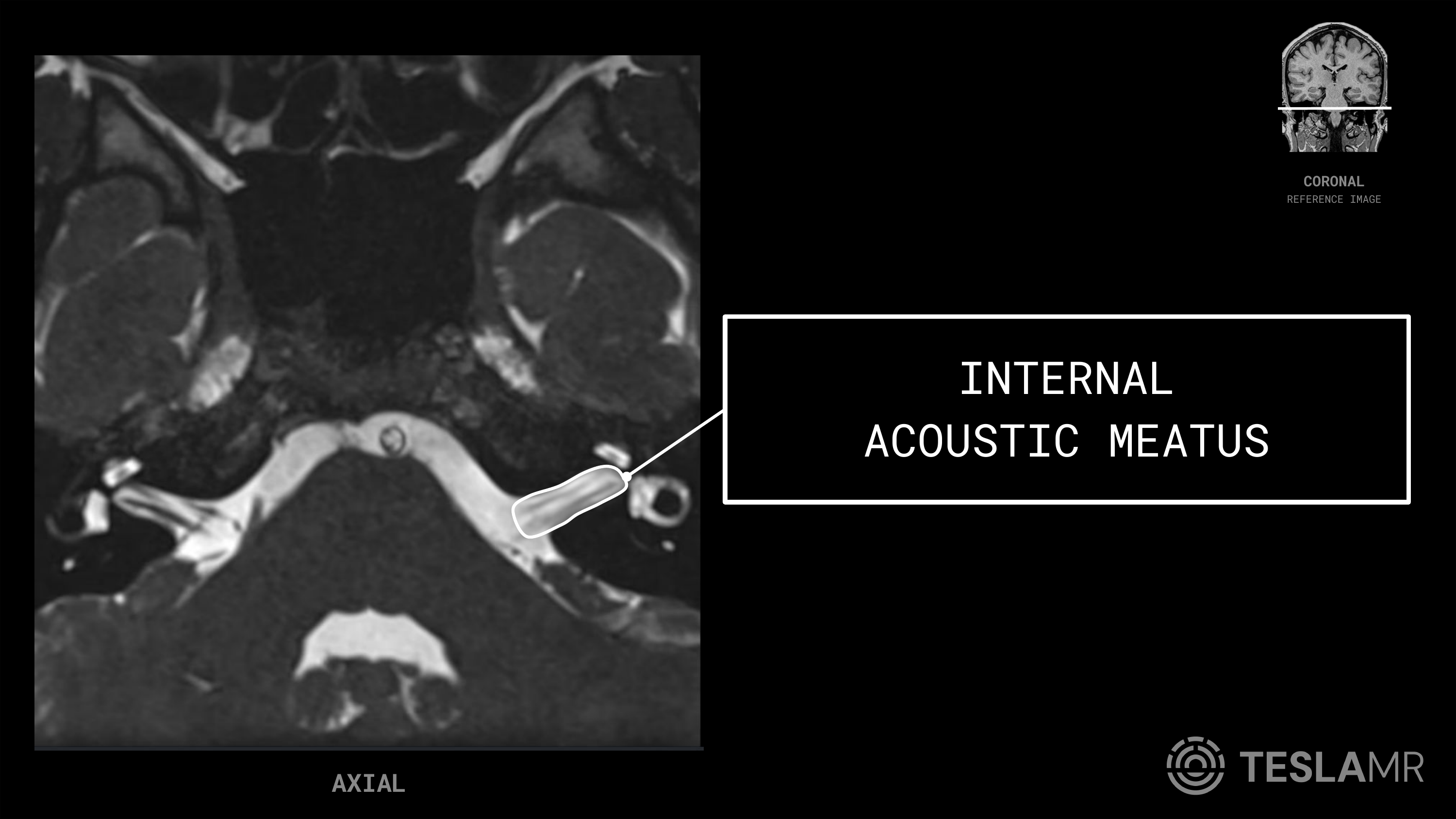

Internal Acoustic Meatus

The bony canal through the petrous temporal bone that transmits the facial nerve (CN VII), the vestibulocochlear nerve (CN VIII), and the labyrinthine artery from the posterior fossa to the inner ear.

On MRI: A fluid-filled (bright on thin-slice T2) tube running laterally from the cerebellopontine angle cistern; the medial opening is the porus and the lateral blind end is the fundus, where the falciform crest divides it. Axial shows its length, coronal shows its cross-section.

Common pathology: Widening or erosion suggests a vestibular schwannoma; this canal is the primary search region on any unilateral sensorineural hearing loss study.

Tip: The internal acoustic meatus and internal auditory canal (IAC) refer to the same structure; the meatus strictly names the opening, but the terms are used interchangeably at the scanner.

Frequently asked questions

What structures are seen on an internal auditory canal (IAC) MRI?

A dedicated IAC study shows the four nerves running through the canal (the facial nerve CN VII, the vestibulocochlear nerve CN VIII, and its cochlear and vestibular branches), the bony internal acoustic meatus itself, and the membranous labyrinth of the inner ear: the cochlea, the vestibule, and the lateral and posterior semicircular ducts. This page labels each one with its MRI appearance.

Which sequence and plane are best for imaging the IACs?

A thin-slice, heavily T2-weighted steady-state sequence (CISS, FIESTA, or equivalent) is the workhorse, often combined with post-contrast T1 when a schwannoma is suspected. Bright cerebrospinal fluid and endolymph outline the dark nerves and bright labyrinth. Axial covers the canal and inner ear most completely, while coronal and oblique-sagittal reconstructions confirm the position of each nerve within the canal.

Why are the nerves dark and the fluid bright on IAC images?

On heavily T2-weighted thin-slice imaging, cerebrospinal fluid in the canal and endolymph and perilymph in the labyrinth are very bright, while the solid nerves return low (dark) signal. That high contrast is exactly what lets you separate the four nerve bundles inside the canal and trace the cochlea and semicircular ducts.

How do you remember the position of the nerves inside the canal?

On an oblique-sagittal slice cut across the canal, a common mnemonic is 'Seven-Up, Coke-Down': the facial nerve (CN VII) sits anterior-superior and the cochlear nerve sits anterior-inferior, with the superior and inferior vestibular nerves filling the two posterior quadrants. The falciform crest separates the upper from the lower nerves at the fundus.

Do I need an account to use these IACs MRI flashcards?

No. The interactive flashcards and this full labeled reference are open to use, with no account required to start. Creating an account lets you save your progress across devices and track which packs you have mastered.
