Breast Anatomy

Learn to identify every labeled structure on a Breast MRI, plane by plane.

Studying as a guest, so progress saves on this device only.

Breast anatomy, structure by structure

Breast MRI is the most sensitive imaging test for breast cancer, and reading it starts with knowing the normal anatomy of the breast and the chest wall behind it. This reference walks through every structure in our breast flashcard deck on the sagittal plane, a classic teaching view for the breast (most clinical protocols acquire and read in the axial plane for bilateral comparison), with a plain-language definition, how each structure looks on MRI, and the pathology you will actually run into at the scanner.

Breast tissue layers

From the surface inward: the skin, the surrounding fat, the glandular tissue that makes and carries milk, and the ducts running through it. On a fat-suppressed post-contrast study, normal fibroglandular tissue enhances mildly while fat stays dark.

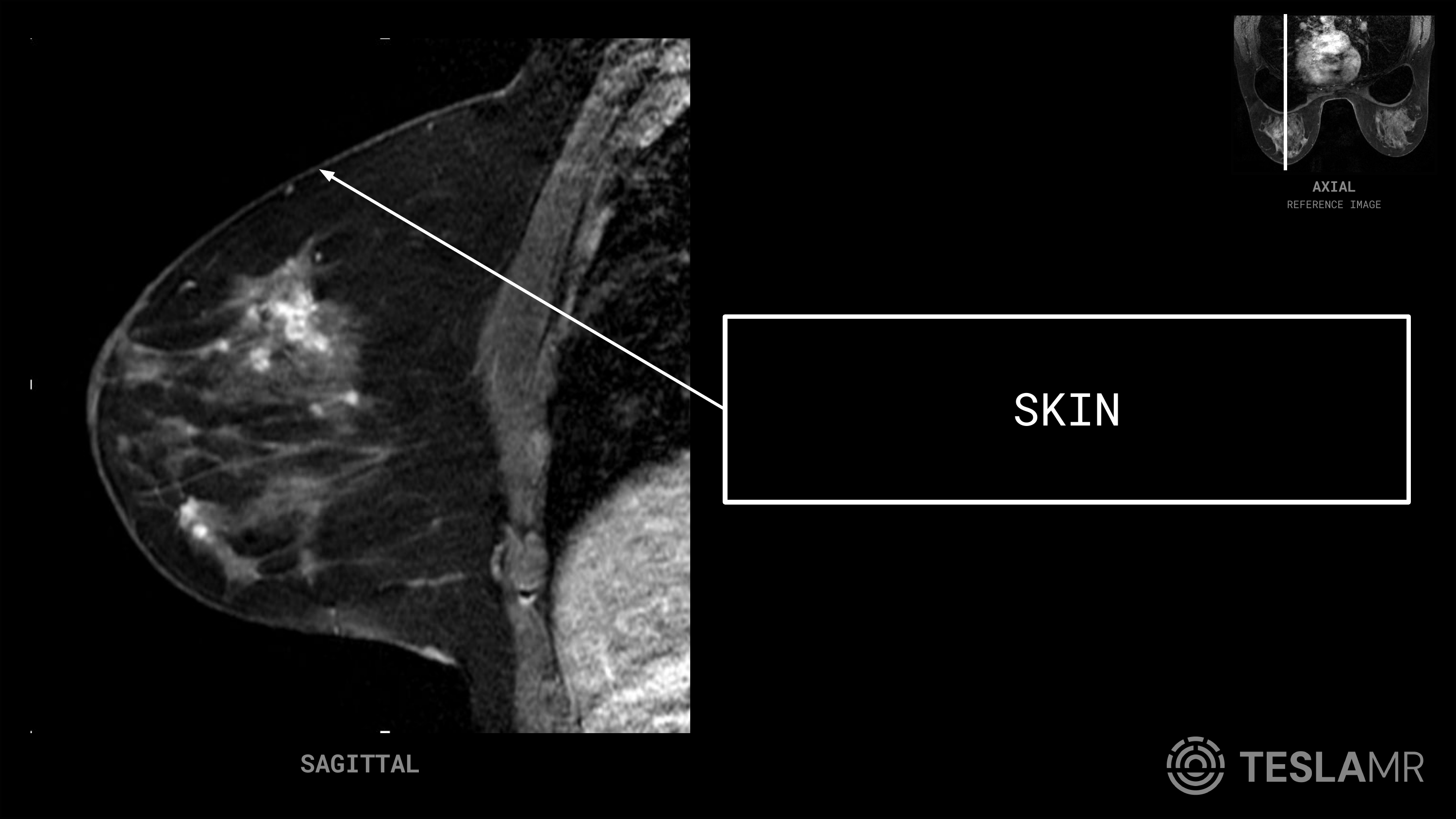

Skin

The thin outer envelope of the breast, normally a uniform layer roughly 2 to 3 mm thick over the entire breast and slightly thicker at the areola.

On MRI: A thin, smooth line at the outer margin of the breast on sagittal images. It normally enhances mildly and symmetrically after contrast; thickness should be even all the way around.

Common pathology: Skin thickening from inflammatory carcinoma, mastitis, post-surgical or post-radiation change, or lymphedema; focal skin enhancement can signal tumor involvement of the skin.

Tip: Compare skin thickness on both breasts at the same level; asymmetric thickening or enhancement is the finding that matters.

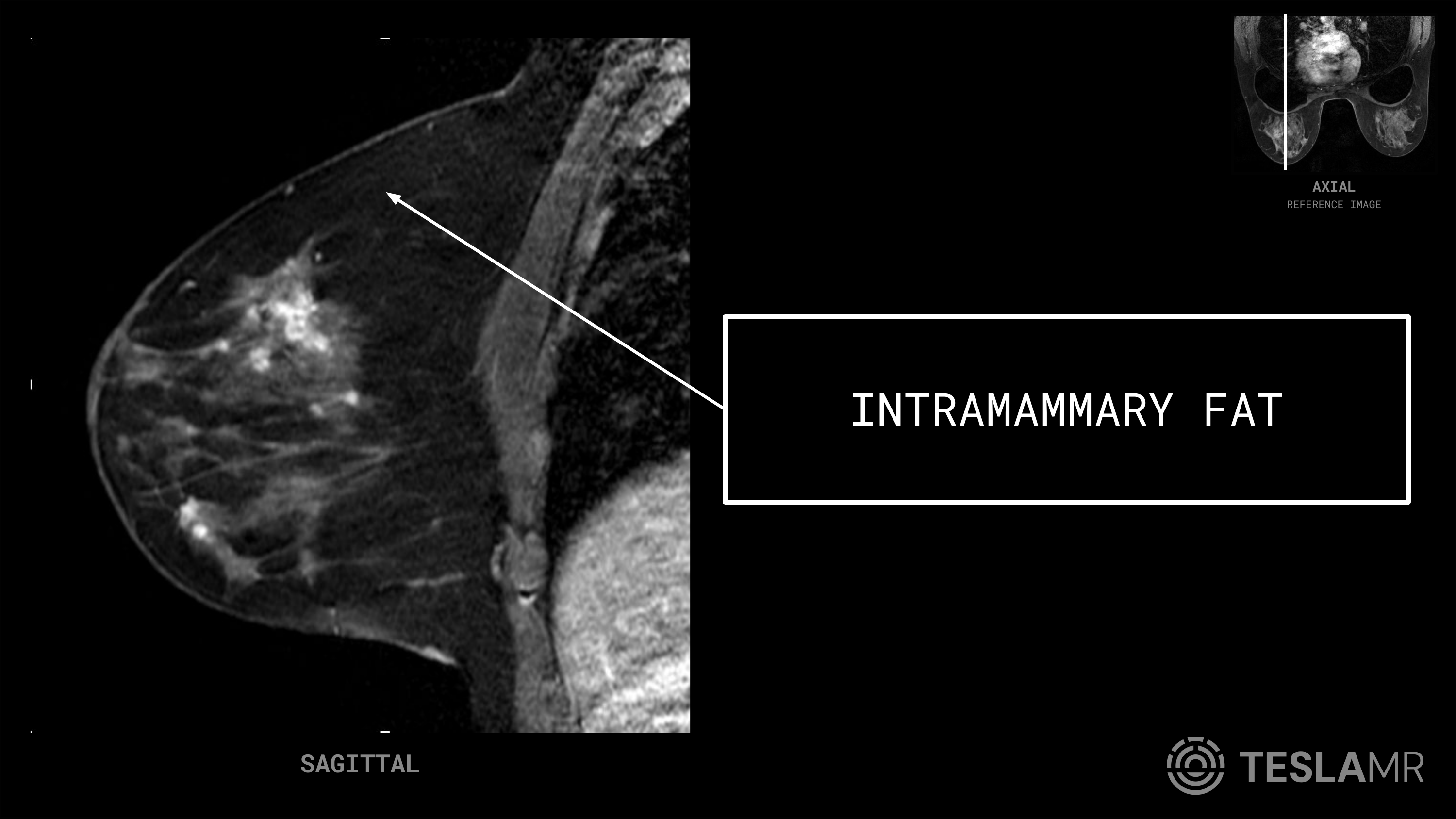

Intramammary Fat

The fatty (adipose) tissue that surrounds and is interspersed with the glandular tissue, making up much of the breast volume.

On MRI: Bright on non-fat-suppressed T1 and T2, and dark on the fat-suppressed T1 sequences used for contrast imaging. It provides the natural background contrast that makes enhancing lesions stand out.

Common pathology: Fat necrosis after surgery, trauma, or radiation (often with a fat-containing oil cyst); lipomas and the fatty hilum of a normal lymph node also follow fat signal.

Tip: Fat suppression turning this layer dark is the check that the enhancement you see in glandular tissue is real and not just bright fat.

Fibroglandular Tissue

The functional glandular and supporting connective tissue of the breast: the lobules that produce milk plus the fibrous stroma around them.

On MRI: Intermediate to low signal on T1, brighter on T2 and on fat-suppressed sequences. After contrast it shows normal background parenchymal enhancement, which can be minimal to marked and varies with the menstrual cycle.

Common pathology: Most breast cancers arise here; the amount of fibroglandular tissue sets breast density. Marked background parenchymal enhancement can mask or mimic disease.

Tip: For screening MRI, time the study to days 7 to 14 of the cycle when possible to keep background parenchymal enhancement low.

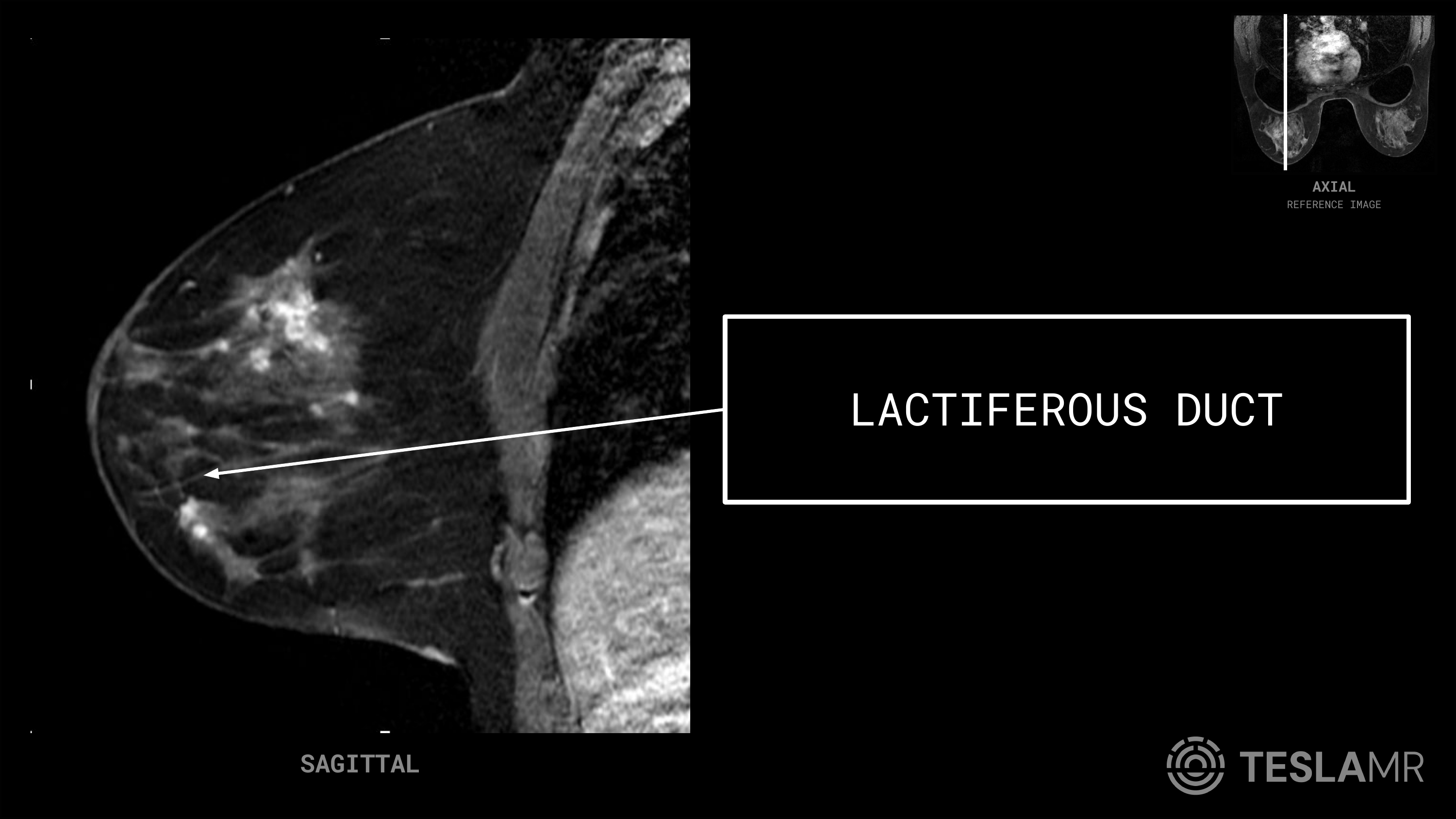

Lactiferous Duct

One of the milk-carrying channels that drain the lobules and converge toward the nipple.

On MRI: Thin tubular structures coursing through the fibroglandular tissue toward the nipple; fluid-filled ducts are bright on T2. Normal ducts show little or no enhancement.

Common pathology: Ductal carcinoma in situ (often non-mass linear or segmental enhancement following a duct), intraductal papilloma, and duct ectasia.

Tip: Linear or segmental enhancement that follows a duct toward the nipple is a classic pattern worth flagging for the radiologist.

Chest wall behind the breast

Deep to the breast tissue sit the pectoral muscle and the lung. These are the posterior landmarks that tell you how deep a lesion is and whether disease has reached the chest wall.

Pectoralis Muscle

The pectoralis major muscle of the anterior chest wall, lying directly behind the breast and forming its posterior boundary.

On MRI: Intermediate muscle signal on T1 and T2, sitting as a smooth band deep to the retromammary fat. It enhances only mildly, so it is a useful dark backdrop for posterior lesions.

Common pathology: The key question is invasion: loss of the fat plane, abnormal muscle enhancement, or tumor extending into the muscle indicates chest wall involvement and changes staging.

Tip: Check the thin fat line between the breast and the pectoralis; an intact plane usually means the chest wall is spared.

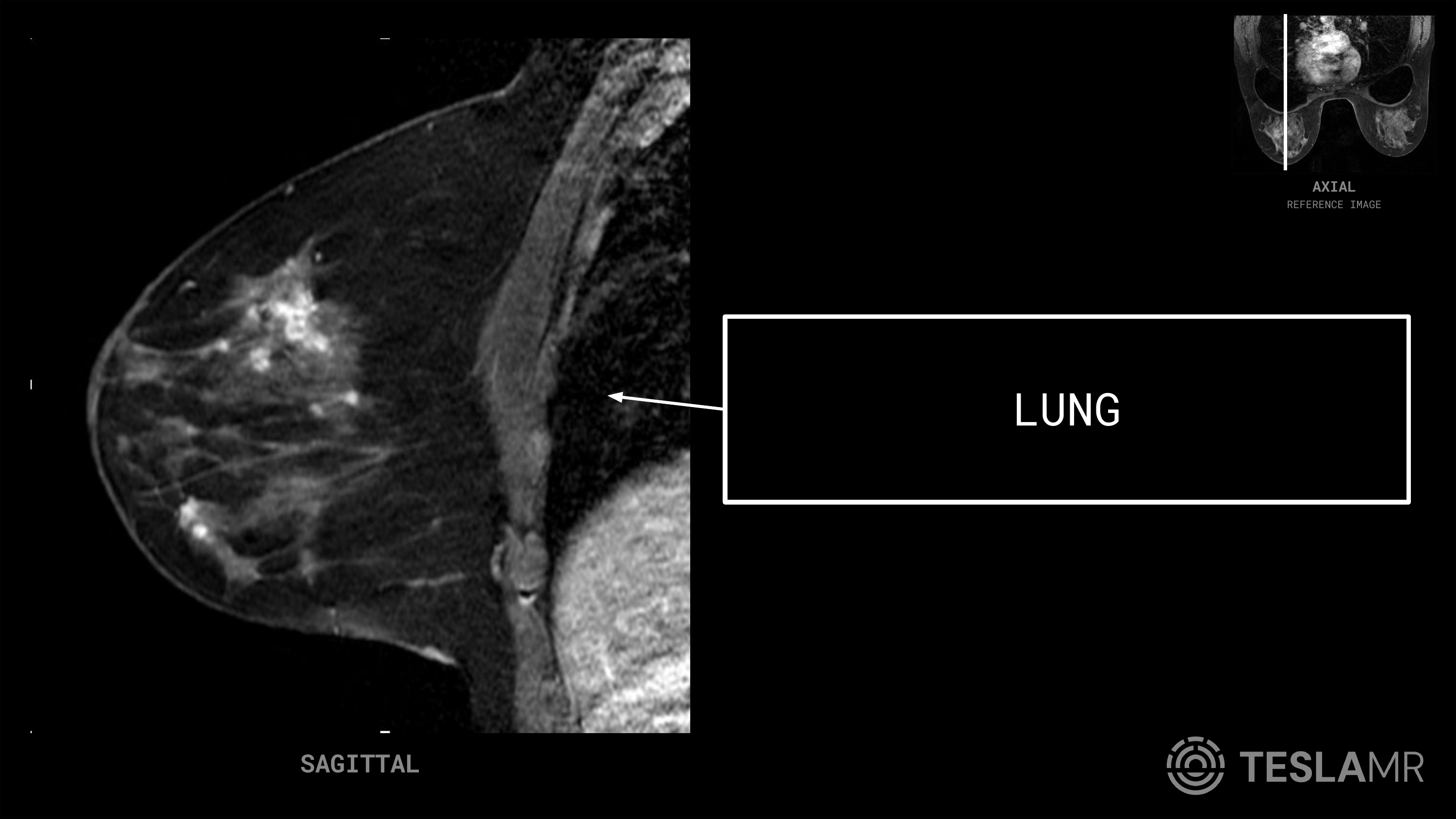

Lung

The air-filled lung lying deep to the chest wall, marking the deepest extent of the breast MRI field of view.

On MRI: Signal-void (dark) on all sequences because aerated lung contains almost no protons to image. It defines the posterior edge of the study behind the ribs and pleura.

Common pathology: Not a primary target of breast MRI, but the posterior slices can incidentally show pleural effusions, lung nodules, or evidence of chest wall and pleural extension of breast cancer.

Tip: Use the dark lung as your back wall; anything enhancing right in front of it deserves a second look for chest wall extension.

Frequently asked questions

Which plane is best for studying breast MRI anatomy?

Sagittal is the classic teaching plane for the breast because a single slice shows the skin, fat, fibroglandular tissue, ducts, and the pectoralis muscle and lung behind it from front to back. Axial is also used heavily in clinical protocols because it lets the radiologist compare both breasts side by side on the same image.

What sequences are used in a breast MRI?

A standard breast MRI uses a T2-weighted sequence (often fat-suppressed) plus a dynamic fat-suppressed T1-weighted series before and several times after gadolinium contrast. Subtraction images and kinetic curves come from that dynamic series, with suspicious lesions classically showing rapid early enhancement and washout.

How do you tell fat from fibroglandular tissue on breast MRI?

On non-fat-suppressed T1, fat is bright and fibroglandular tissue is darker. On the fat-suppressed T1 sequences used for contrast imaging, fat turns dark while glandular tissue and enhancing lesions stay relatively bright, which is what makes abnormal enhancement stand out against the dark fat background.

What are the key landmarks behind the breast on MRI?

The pectoralis major muscle forms the posterior boundary of the breast, separated from the breast tissue by a thin retromammary fat plane, and the air-filled lung sits deep to the chest wall as a signal-void back wall. Loss of the fat plane or abnormal muscle enhancement raises concern for chest wall invasion.

Do I need an account to use these Breast MRI flashcards?

No. The interactive flashcards and this full labeled reference are open to use, with no account required to start. Creating an account lets you save your progress across devices and track which packs you have mastered.
